Switchcraft Inc.United States

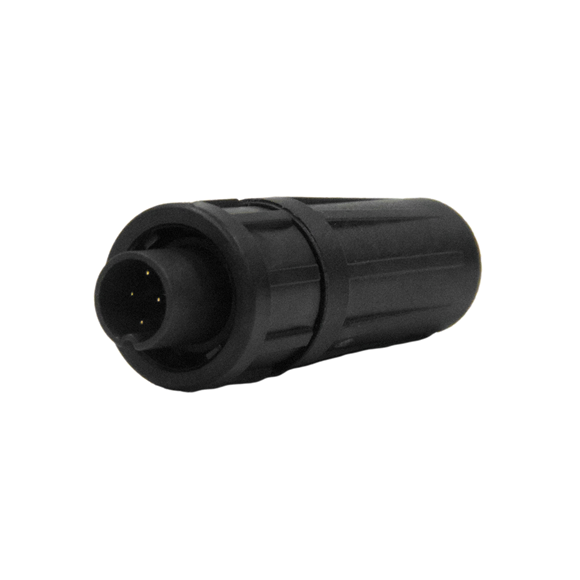

EN2 Cord Connector, 7 position #26 male pins, #26 contact size, Daisy Chain Grommet, Ribbed Coupling Ring, Kit (one unit/bag) packaging
All alternatives
View full reportTechnical parameters
Key specs
GenderMale
| Power | |
|---|---|
| Current Interruption | Not for Current Interruption |
| Current Rating | 3 Amps |
| Voltage Rating | 125 Volts |
| Environment and package | |
| Contact Size | 26 AWG |
| Maxiumum Temperature | 85 C |
| Minimum Temperature | -40 C |
| Moisture Resistance | MIL-STD-202G Method 106G |
| Mounting Type | Cord |
| REACH Compliant | Compliant |
| RoHS Compliant | 1 |
| Temperature Range | -40?C to +85?C |
| Thermal Shock | Mil-Std 202G method 107G |
| Other | |
| Backshell Style | Standard |
| Body Material | Thermoplastic |
| Brand | Switchcraft |
| Cable Opening | 0.14, 0.18, 0.22 in |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Plating Type | Gold |
| Contact Resistance | 0.01 Ohms |
| Coupling Locking Style | Bayonet |
| CSA | 1 |
| Flame Rating | UL94V-0 |
| Gender | Male |
| Insert Material | Elastomeric |
| Insert Material Type | Elastomeric |
| Insulation Resistance | 100000 MOhms |
| IP65 | 1 |
| IP66 | 1 |
| IP67 | 1 |
| IP68 | 1 |
| IP69K | 1 |
| IP Rating | IP68 |
| Life Cycle | 600 Cycles |
| Locking | Locking |
| Number of Conductors | 7 |
| Operating Force | 8 lbs |
| Outer Diameter | 0.53 in |
| Packaging Type | Kit |
| Product Line | EN2 |
| Salt Spray | MIL-STD-202G Method 101E Test Cond B |
| Sealed | Sealed |
| Shielding | Unshielded |
| Termination Style | Solder/Crimp |
| UL | 1 |
| UV Rating | F1 |
| Vibration | Mil-Std 202G Method 201A |
| Winged Coupling Ring | Not Winged |
