Switchcraft Inc.United States

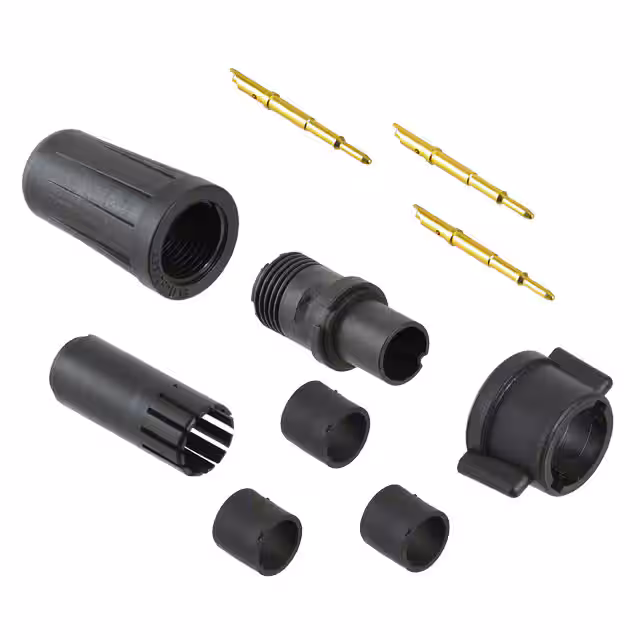

CONN PLUG MALE 3POS GOLD CRIMP
All alternatives
View full reportTechnical parameters
Key specs
Positions3
GenderMale
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 2A |
| Voltage Rating | 125VAC/DC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Applications | Communication Systems, Industrial, Marine, Medical |
| Backshell Material, Plating | Thermoplastic |
| Base Product Number | EN2C3M |
| Cable Opening | - |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Coupling Nut, Winged |
| Ingress Protection | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Insert Material | Elastomer |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Switchcraft Inc. |
| Number of Positions | 3 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Active |
| Series | EN2™ |
| Shell Finish | - |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Crimp or Solder Cup |
