Rohm SemiconductorJapan

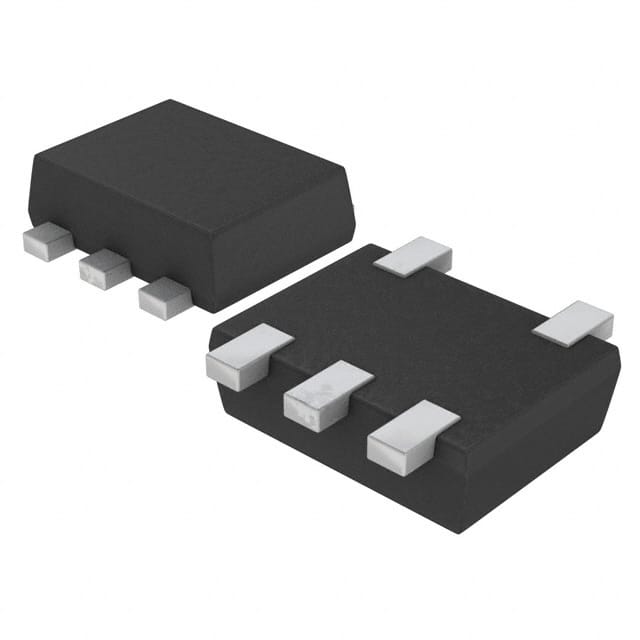

TRANS 2PNP PREBIAS 0.15W EMT5
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 150mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | EMT5 |
| Other | |
| Base Product Number | EMA11 |
| Mfr | Rohm Semiconductor |
| Product Status | Not For New Designs |
| Resistor - Base (R1) | 4.7kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Series | - |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
