IntersilUnited States
IC OPAMP VFB 1 CIRCUIT TSOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.5 ~ 16.5 V
Gain bandwidth product32 MHzTyp
Input offset voltage3 mVTyp
Quiescent current2.5 mATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 2 nA |
| Current - Output / Channel | 65 mA |
| Current - Supply | 2.5mA |
| Voltage - Supply Span (Max) | 16.5 V |
| Voltage - Supply Span (Min) | 4.5 V |
| AC and DC characteristics | |
| -3db Bandwidth | 60 MHz |
| Gain Bandwidth Product | 32 MHz |
| Slew Rate | 75V/µs |
| Voltage - Input Offset | 3 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |

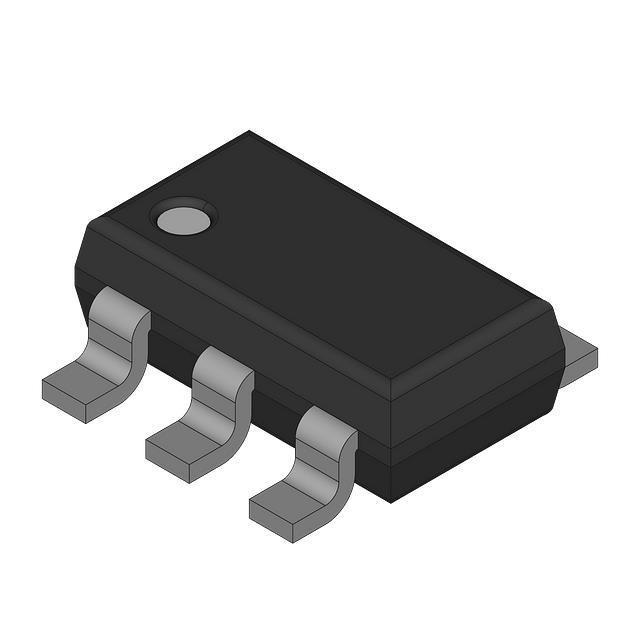

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Other | |
| Amplifier Type | Voltage Feedback |
| Mfr | Intersil |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Packaging | Bulk |
| Part Status | Active |
| Series | - |
