Chemi-ConJapan

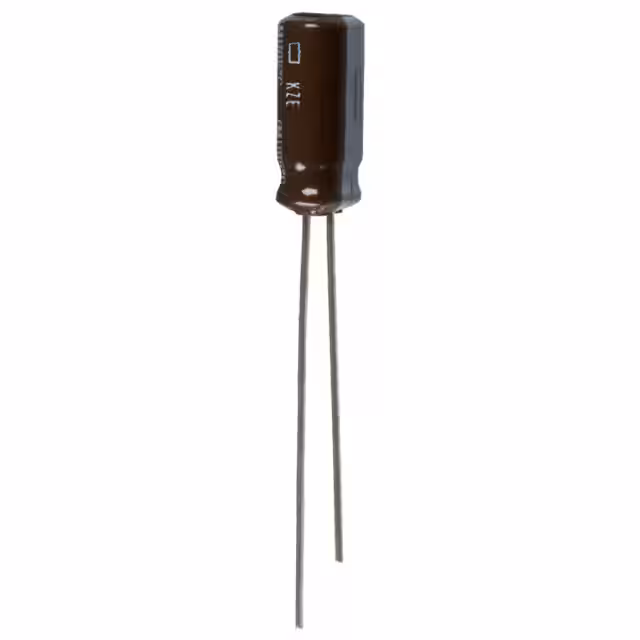

CAP ALUM 100UF 20% 10V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance100 µF
Rated voltage10 V
Tolerance20 %
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 10 V |
| AC and DC characteristics | |
| Impedance | 300 mOhms |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR) |
| Package / Case | Radial, Can |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.079" (2.00mm) |
| Mfr | United Chemi-Con |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | KZE |
| Tolerance | ±20% |
Documents
No documents are linked to this part yet.
