Chemi-ConJapan
CAP ALUM 5600UF 20% 10V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance5.6 mF
Rated voltage10 V
Tolerance20 %
Lifetime5 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 10 V |
| AC and DC characteristics | |
| Impedance | 16 mOhms |
| Ripple Current @ High Frequency | 3.46 A @ 100 kHz |
| Ripple Current @ Low Frequency | 2.941 A @ 120 Hz |
| Environment and package | |

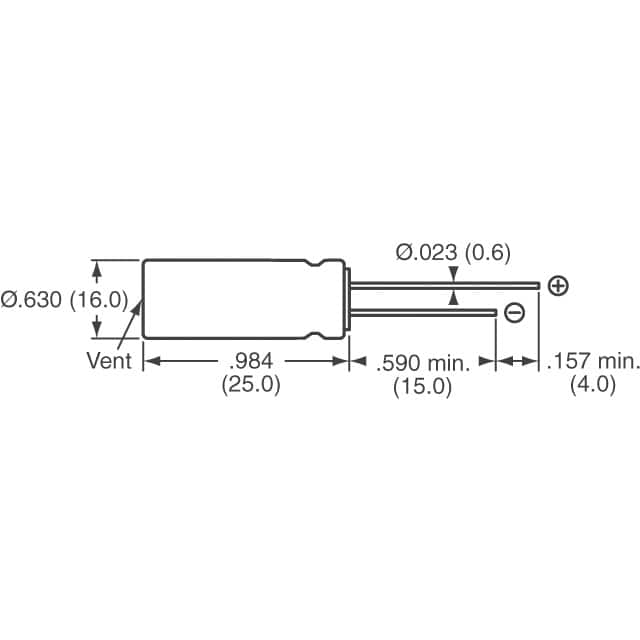

| Height - Seated (Max) | 0.984" (25.00mm) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 5600 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.295" (7.50mm) |
| Mfr | United Chemi-Con |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | KZE |
| Tolerance | ±20% |
