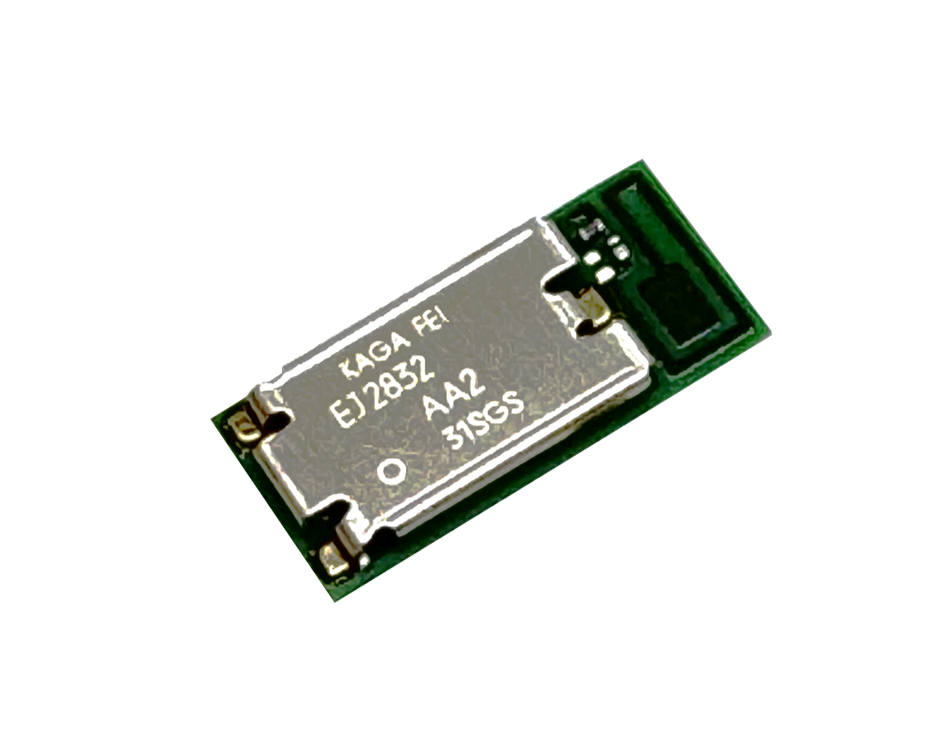

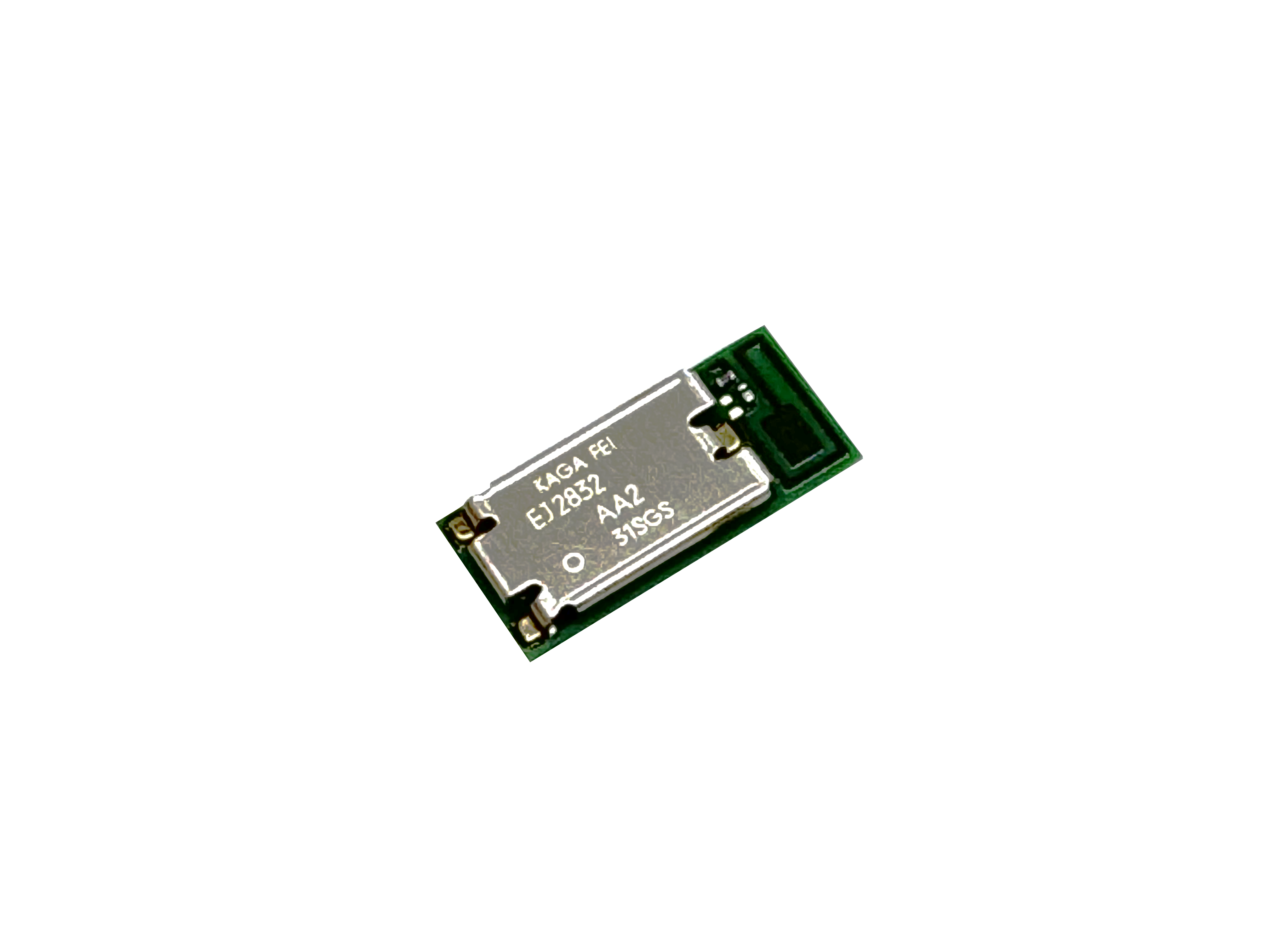

EJ2832AA2 Bluetooth Low Energy Modules
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Dimension(mm) | 5.1x11.3x1.3 |
| OperationTemp.(℃) | -40 to +85 |
| Other | |
| ANT support | Supported by S212 or S332 Softdevice |
| Bluetooth Ver. | v5.0 |
| Certification | Japan, U.S.A., Canada, (CE), Bluetooth® Logo |
| CPU | ARM Cortex M4F |
| Crystal | 32MHz |
| DataSheet | v1.1 |
| DCDC | Supported with Internal LC |
| Feature | Basic Module |
| I/F | UART, SPI, I2C, I2S, PDM, NFC-A |
| Official model | EJ2832AA2 |
| Overview | v1.4 |
| Sensing Evaluate Solution | EY1SENSOR-SKT |
