Switchcraft Inc.United States

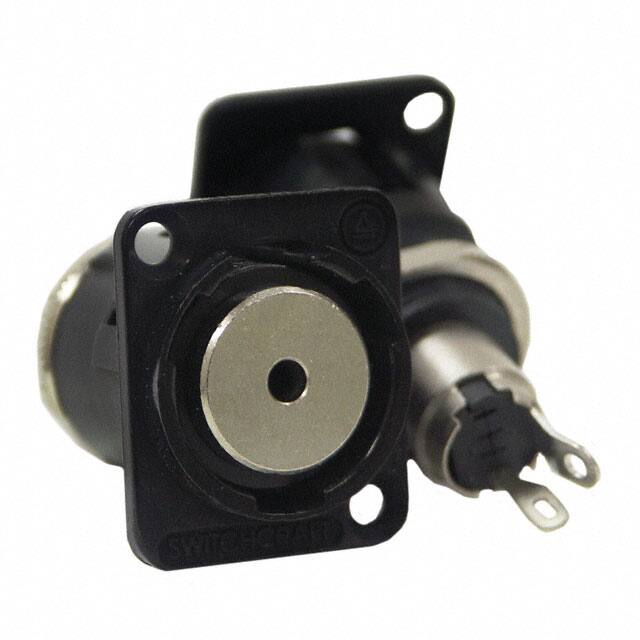

CONN JACK MONO 3.5MM PNL MNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C~60°C |
| Package | Bulk |
| Panel Hole Size | 0.945" (24.00mm) |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.142" (3.60mm) |
| Base Product Number | EH35MM |
| Body Color | Silver, Black |
| Body Material | Zinc Alloy |
| Cable Opening | - |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Silver |
| Features | - |
| Gender | Female |
| Housing Material | Thermoplastic |
| Includes | 3 pcs - 1 Connector, 1 Housing, 1 Nut |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | EH |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Cup |
