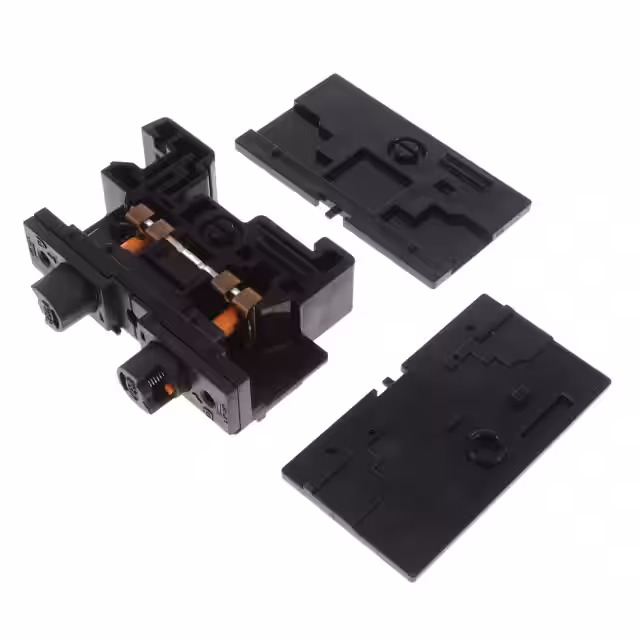

TERMINAL BLOCK DIN RAIL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - UL | 600 V |
| Environment and package | |
| Height (Max) | 2.041" (51.85mm) |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C~105°C |
| Package | Bag |
| Other | |
| Base Product Number | EF2-D60 |
| Features | - |
| Housing Color | Black |
| Length | 2.504" (63.60mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Modified Polyphenylene Ether (M-PPE) |
| Mfr | Hirose Electric Co Ltd |
| Number of Levels | 1 |
| Number of Positions | 1 |
| Product Status | Obsolete |
| Series | ZERO SCREW™ EF2 |
| Stripping Length | - |
| Terminal - Width | 21.0mm |
| Termination Style | Push In, Spring |
| Type | Busbar |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | 5.5-14mm² |
