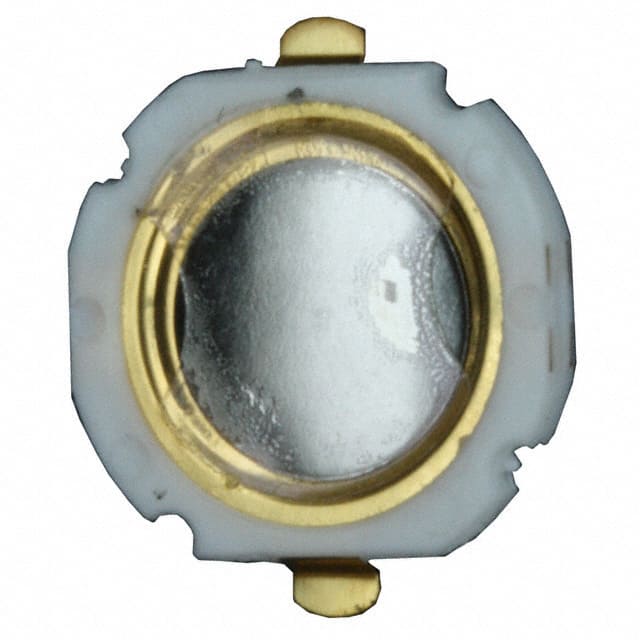

SWITCH TACT SPST-NO 0.05A 100V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 100VAC/DC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 100VAC/DC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 1.20mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~85°C |
| Package | Tray |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Snap Dome |
| Base Product Number | EDM450 |
| Circuit | SPST-NO |
| Features | Tactile Feedback |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | C&K |
| Operating Force | 450gf |
| Outline | - |
| Product Status | Active |
| Series | EDM |
| Switch Function | Off-Mom |
| Switch Travel | 0.40mm |
| Termination Style | SMD (SMT) Tab |
