Panjit International Inc.Taiwan, China
DIODE GEN PURP 200V 3A TO252
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage200 V
Average rectified current3 A
Forward voltage950 mVMax · 3 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 3A |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 3 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

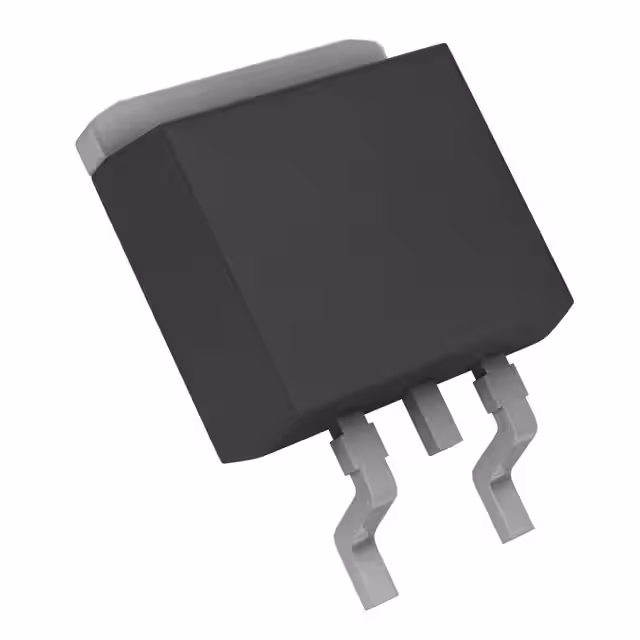

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Other | |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Panjit International Inc. |
| Product Status | Active |
| Reverse Recovery Time (trr) | 35 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
