ECS Inc.United States

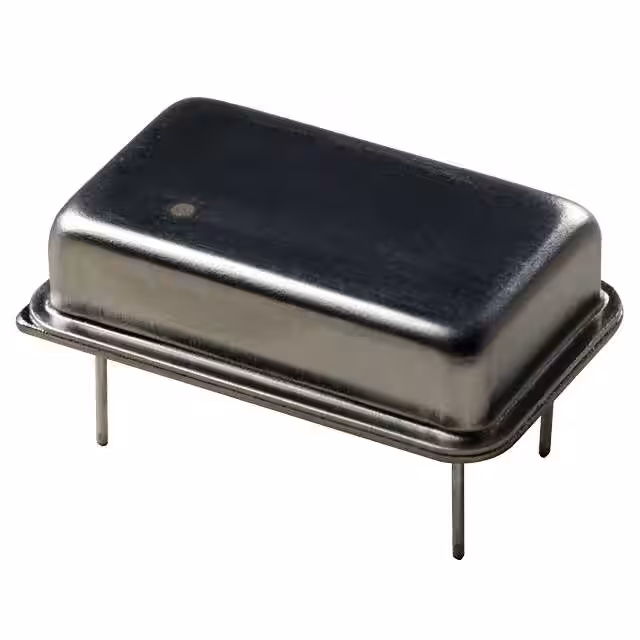

XTAL OSC PROG XO HCMOS 3.3V
All alternatives
View full reportTechnical parameters
Key specs
Frequency1 ~ 125 MHz
Frequency stability100 ppm
Supply voltage≥ 3.3 V
Output typeCMOS
| Power | |
|---|---|
| Current - Supply (Max) | 28mA |
| Voltage - Supply | 3.3V |
| AC and DC characteristics | |
| Available Frequency Range | 1 MHz ~ 125 MHz |
| Frequency Stability | - |
| Frequency Stability (Total) | ±100ppm |
| Spread Spectrum Bandwidth | - |
| Environment and package | |

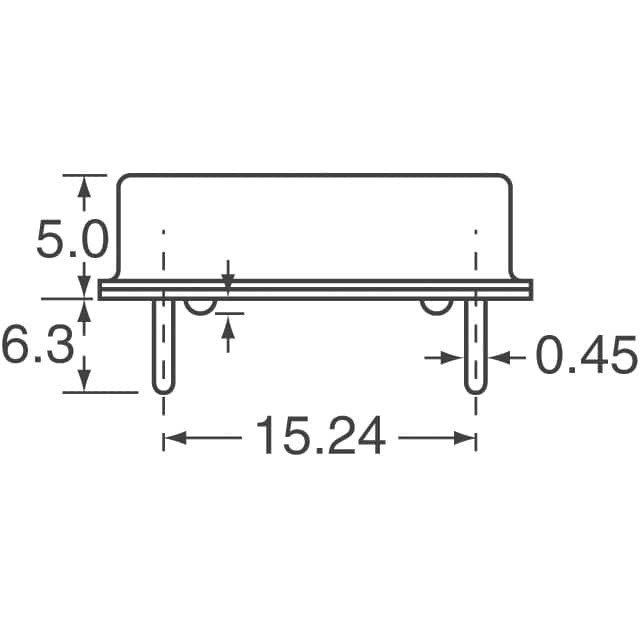

| Height - Seated (Max) | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |

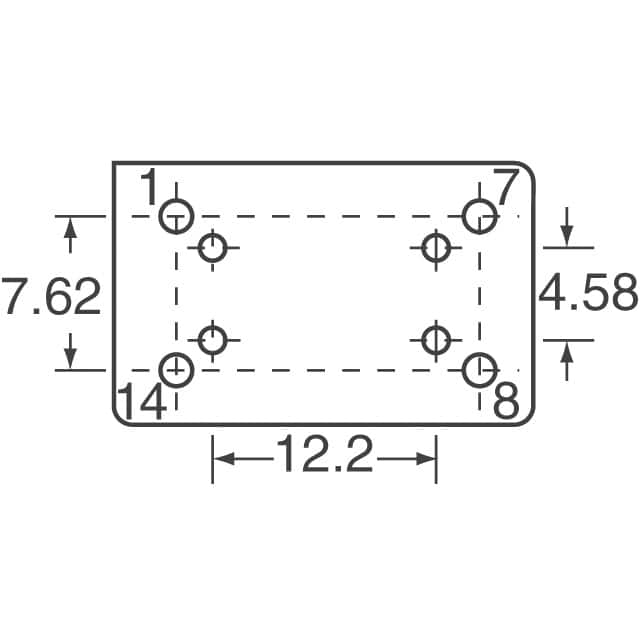

| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |

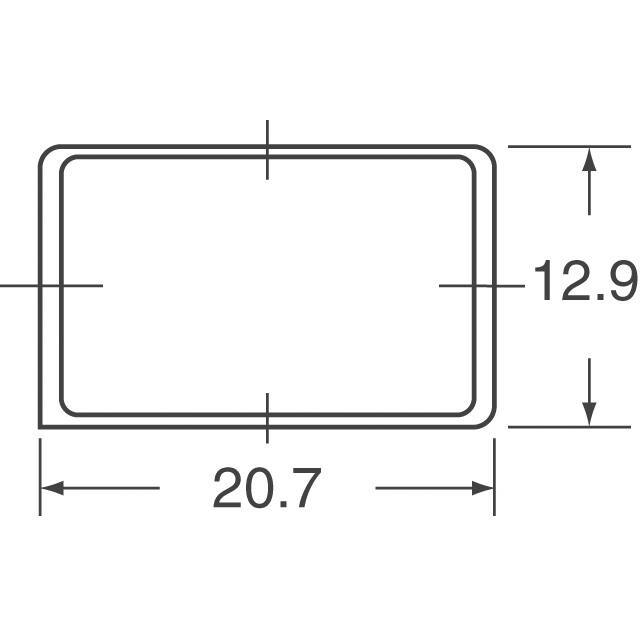

| Size / Dimension | 0.815" L x 0.508" W (20.70mm x 12.90mm) |
| Other | |
| Base Resonator | Crystal |
| Function | Enable/Disable |
| Mfr | ECS Inc. |
| Output | HCMOS |
| Product Status | Active |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Ratings | - |
| Series | ECS-P143 |
| Type | XO (Standard) |
