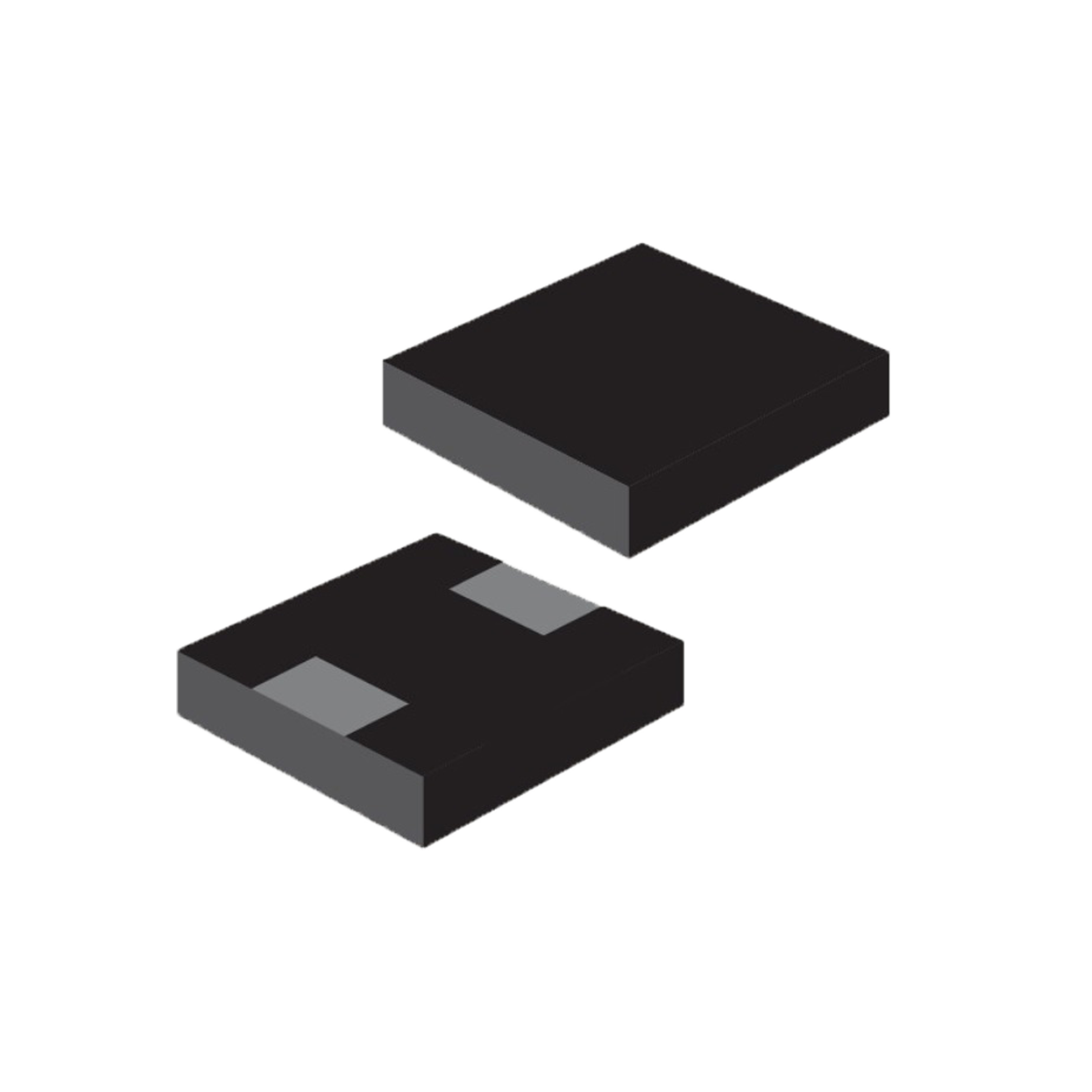

ECS-HCMPI-0503Q-R82M-T
ECS Inc.United States

ECS-HCMPI-0503Q-R82M-T

ActiveFixed Inductors

FIXED IND 820NH 12.9A 5.78 MOHM

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Inductance820 nH
Rated current12.9 AMax
Saturation current17.6 AMax
DC resistance5.78 mΩMax
Power
Current Rating (Amps)12.9 A
Current - Saturation (Isat)17.6A
AC and DC characteristics
Frequency - Self Resonant-
Inductance Frequency - Test100 kHz
Environment and package
Height - Seated (Max)0.122" (3.10mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTape & Reel (TR)
Package / CaseNonstandard
Size / Dimension0.217" L x 0.209" W (5.50mm x 5.30mm)
Supplier Device Package5030
Other
DC Resistance (DCR)5.78mOhm Max
Features-
Inductance820 nH
MfrECS Inc.
Product StatusActive
Q @ Freq-
RatingsAEC-Q200
SeriesECS-HCMPI-0503Q
ShieldingShielded
Tolerance±20%
TypeMolded
