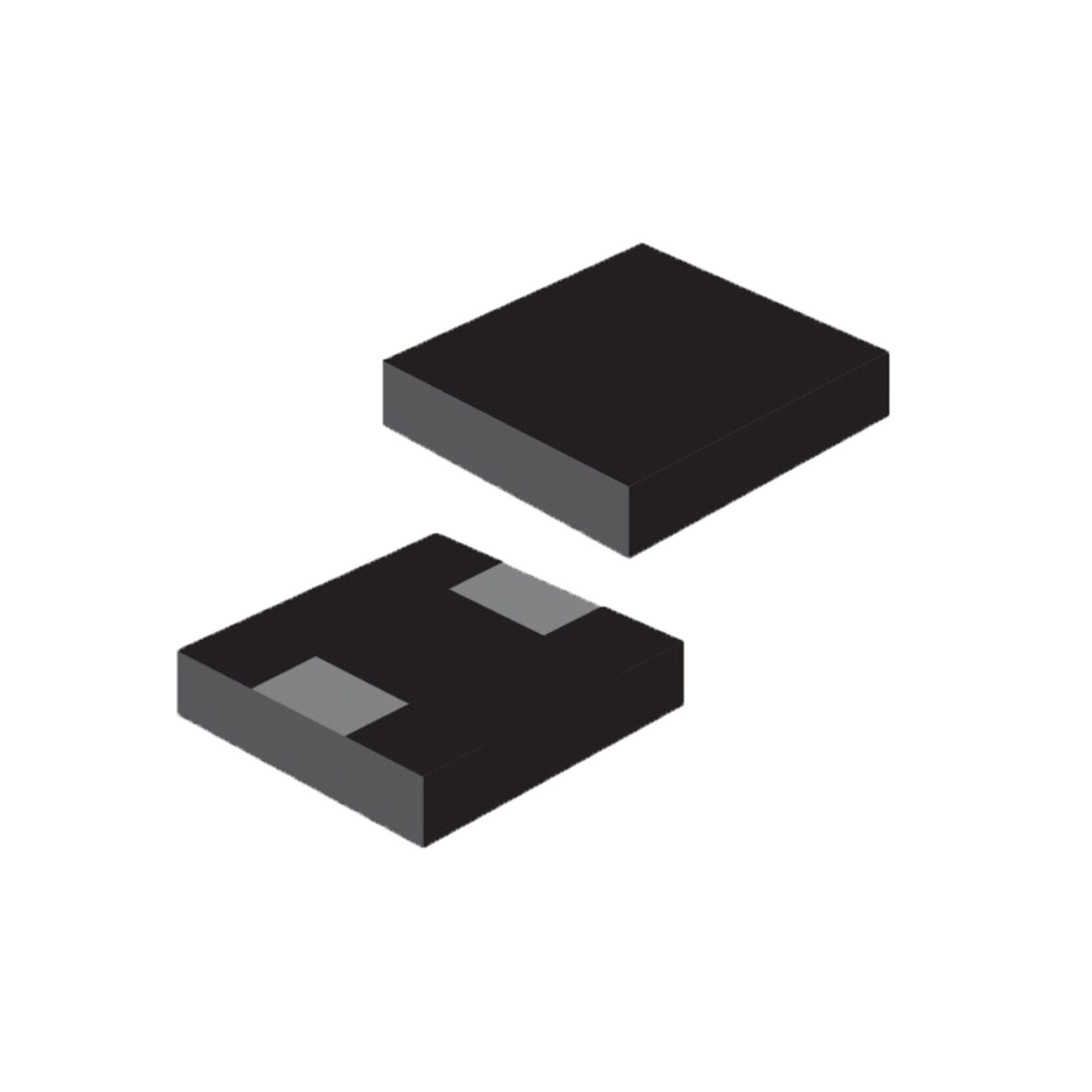

ECS-HCMPI-0503Q-R56M-T

ActiveFixed Inductors

FIXED IND 560NH 17.7A 4.52 MOHM

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Inductance560 nH
Rated current17.7 AMax
Saturation current20.2 AMax
DC resistance4.52 mΩMax
Power
Current Rating (Amps)17.7 A
Current - Saturation (Isat)20.2A
AC and DC characteristics
Frequency - Self Resonant-
Inductance Frequency - Test100 kHz
Environment and package
Height - Seated (Max)0.122" (3.10mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTape & Reel (TR)
Package / CaseNonstandard
Size / Dimension0.217" L x 0.209" W (5.50mm x 5.30mm)
Supplier Device Package5030
Other
DC Resistance (DCR)4.52mOhm Max
Features-
Inductance560 nH
MfrECS Inc.
Product StatusActive
Q @ Freq-
RatingsAEC-Q200
SeriesECS-HCMPI-0503Q
ShieldingShielded
Tolerance±20%
TypeMolded
