ECS-80-16-7SX-TR
ECS Inc.United States

ECS-80-16-7SX-TR

Not For New DesignsCrystals

CRYSTAL 8.0000MHZ 16PF SMD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Frequency8 MHz
Frequency tolerance30 ppm
Load capacitance16 pF
ESR100 ΩMax
AC and DC characteristics
Frequency8 MHz
Frequency Stability±50ppm
Frequency Tolerance±30ppm
Environment and package

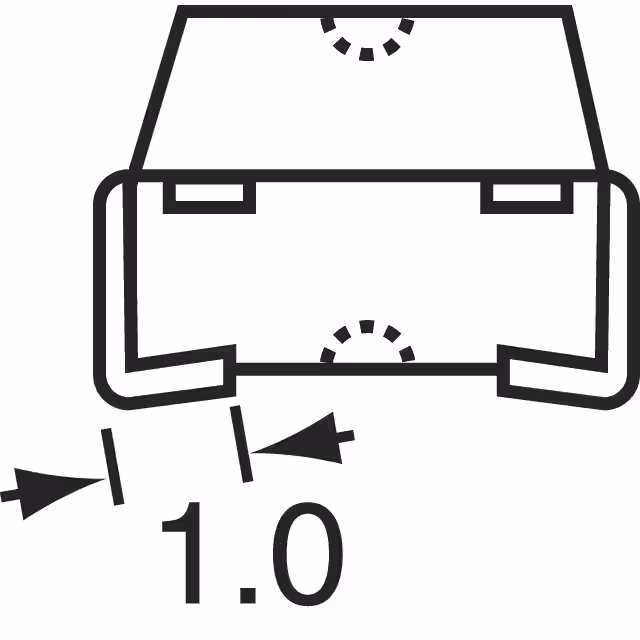

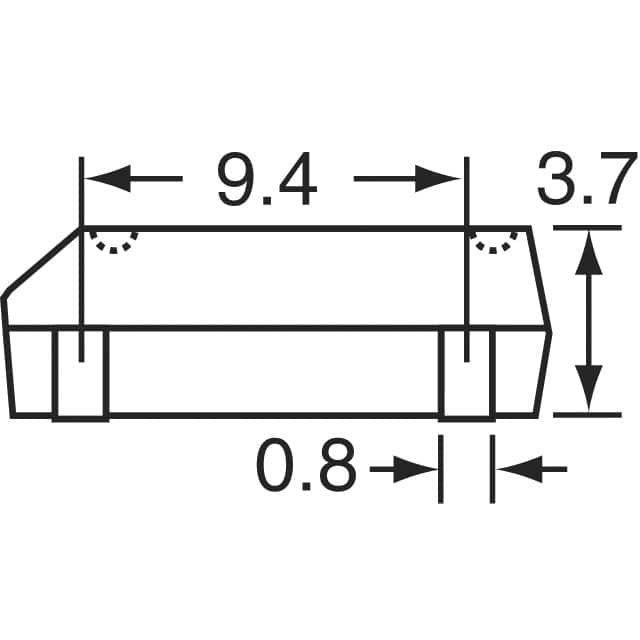

Height - Seated (Max)0.146" (3.70mm)
Mounting TypeSurface Mount
Operating Temperature-10°C~70°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®

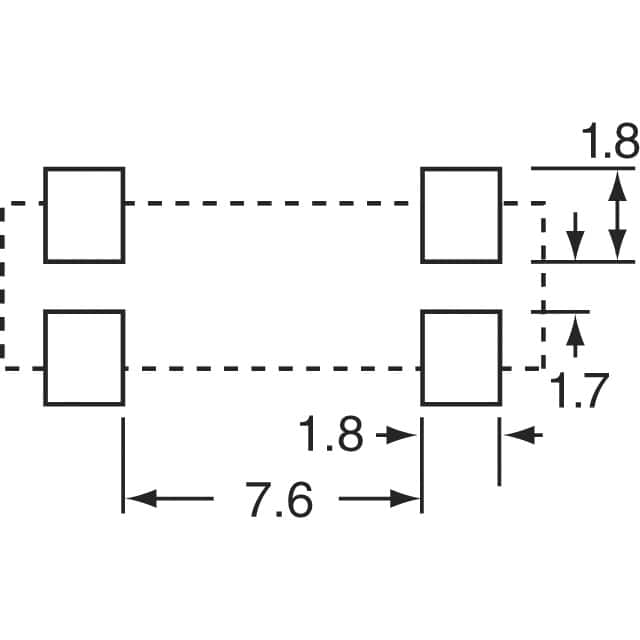

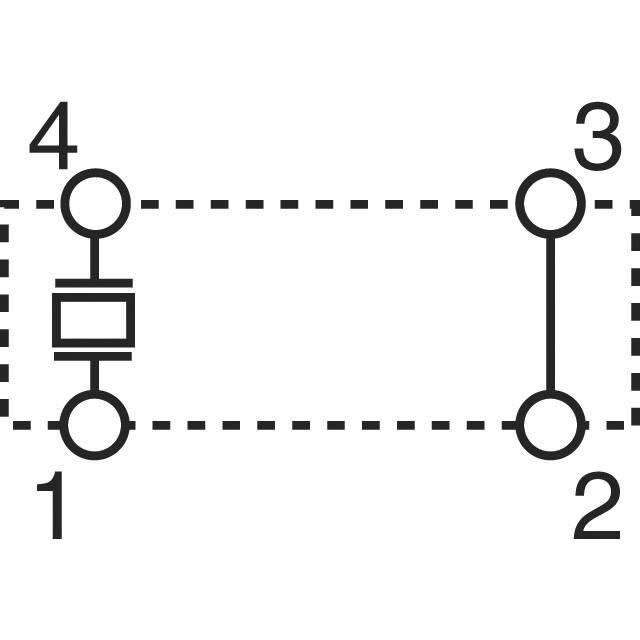

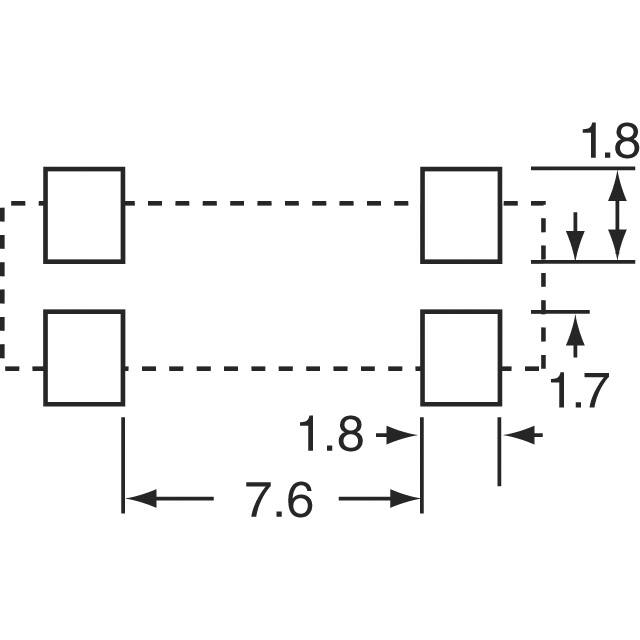

Package / Case4-SOJ, 9.40mm pitch
Size / Dimension0.492" L x 0.181" W (12.50mm x 4.60mm)
Other
ESR (Equivalent Series Resistance)100 Ohms
Load Capacitance16pF
MfrECS Inc.
Operating ModeFundamental
Product StatusNot For New Designs
Ratings-
SeriesECX-3SX
TypeMHz Crystal
