ECS Inc.United States

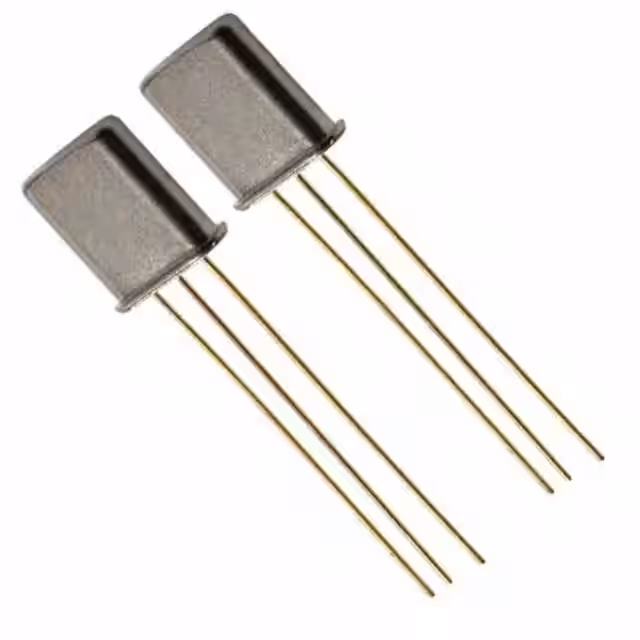

MONO XTAL 45MHZ 4P 3DB TH 2PC
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth | 35 kHz |
| Frequency - Center | 45 MHz |
| Impedance | 1.2 kOhms |
| Ripple | 1dB |
| Environment and package | |
| Height (Max) | 0.315" (8.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~70°C |
| Package | Bulk |
| Package / Case | UM-1 |
| Size / Dimension | 0.287" L x 0.098" W (7.30mm x 2.50mm) |
| Other | |
| Insertion Loss | 3dB |
| Mfr | ECS Inc. |
| Number of Poles | 4 |
| Product Status | Active |
| Series | MCF |
