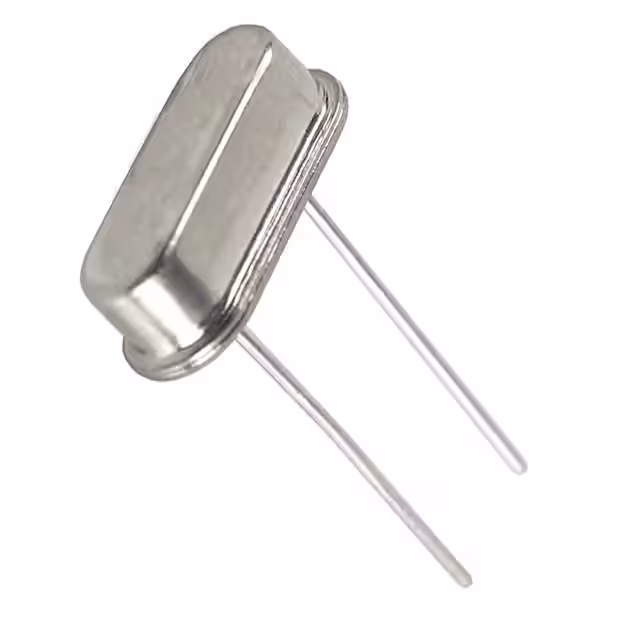

ECS-40-20-4
ECS Inc.United States

ECS-40-20-4

Not For New DesignsCrystals

CRYSTAL 4.0000MHZ 20PF TH

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Frequency4 MHz
Frequency tolerance30 ppm
Load capacitance20 pF
ESR150 ΩMax
AC and DC characteristics
Frequency4 MHz
Frequency Stability±50ppm
Frequency Tolerance±30ppm
Environment and package

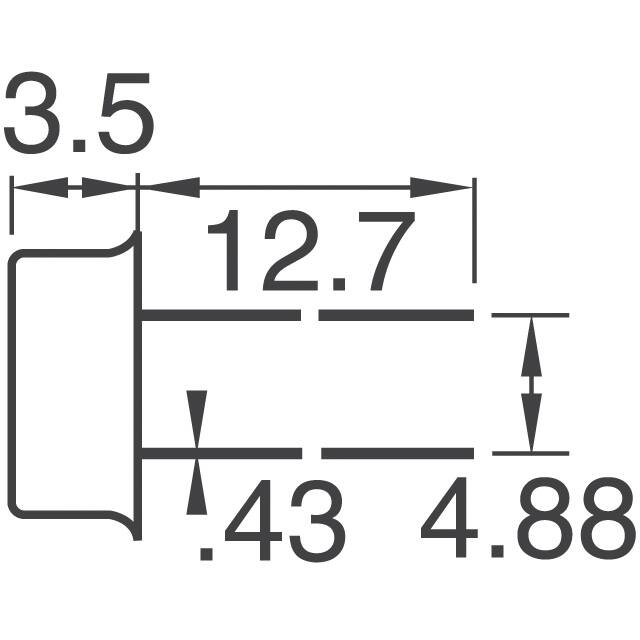

Height - Seated (Max)0.138" (3.50mm)
Mounting TypeThrough Hole
Operating Temperature-10°C~70°C
PackageBulk
Package / CaseHC-49/US
Size / Dimension0.447" L x 0.183" W (11.35mm x 4.65mm)
Other
ESR (Equivalent Series Resistance)150 Ohms
Load Capacitance20pF
MfrECS Inc.
Operating ModeFundamental
Product StatusNot For New Designs
Ratings-
SeriesHC-49US
TypeMHz Crystal

Documents

No documents are linked to this part yet.
