ECS Inc.United States

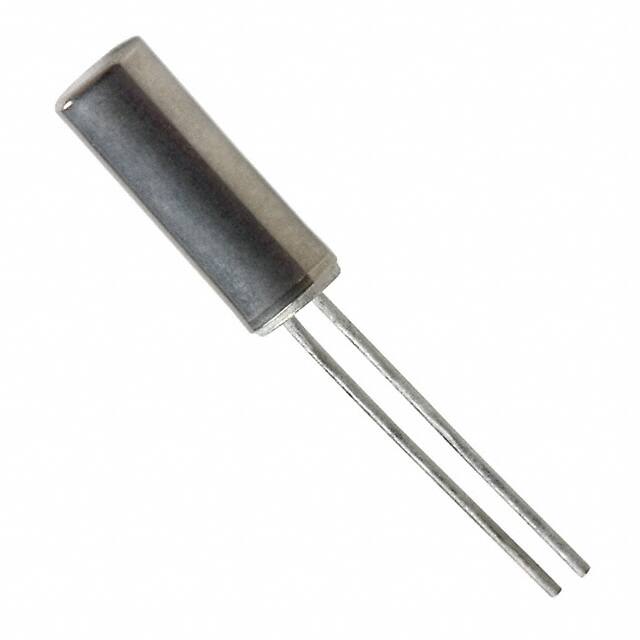

CRYSTAL 32.7680KHZ 12.5PF TH
All alternatives
View full reportTechnical parameters
Key specs
Frequency32.77 kHz
Frequency tolerance20 ppm
Load capacitance12.5 pF
ESR35 kΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Environment and package | |
| Height - Seated (Max) | 0.323" (8.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -10°C~60°C |
| Package | Bulk |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension | 0.122" Dia x 0.323" L (3.10mm x 8.20mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 35 kOhms |
| Load Capacitance | 12.5pF |
| Mfr | ECS Inc. |
| Operating Mode | Fundamental |
| Product Status | Not For New Designs |
| Ratings | - |
| Series | ECS-3X8 |
| Type | kHz Crystal (Tuning Fork) |
