ECS Inc.United States

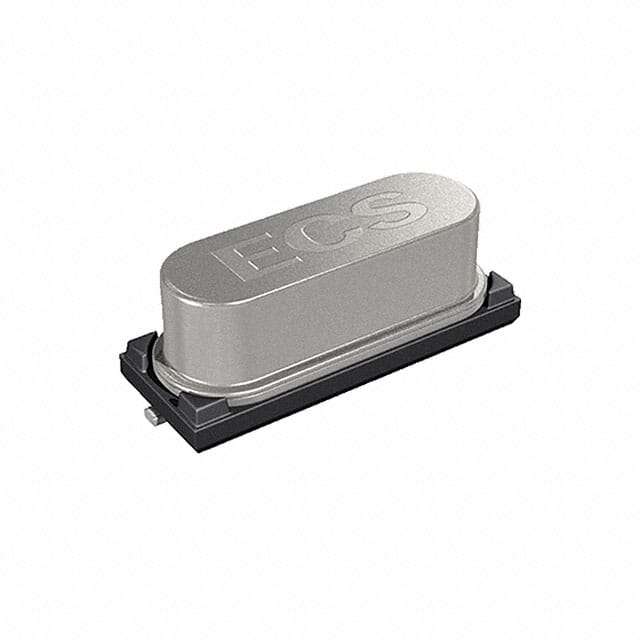

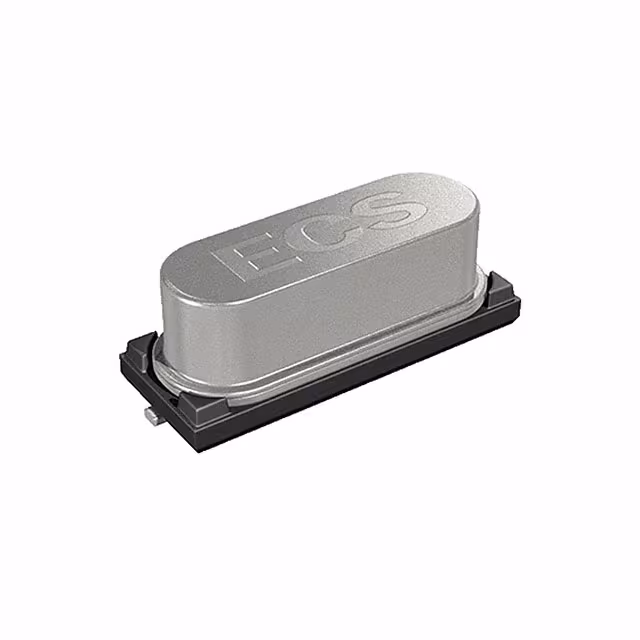

CRYSTAL 3.6864MHZ 20PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency3.686 MHz
Frequency tolerance30 ppm
Load capacitance20 pF
ESR150 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 3.6864 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Environment and package | |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -10°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | HC-49/US |
| Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Load Capacitance | 20pF |
| Mfr | ECS Inc. |
| Operating Mode | Fundamental |
| Product Status | Not For New Designs |
| Ratings | - |
| Series | CSM-7 |
| Type | MHz Crystal |
