ECS Inc.United States

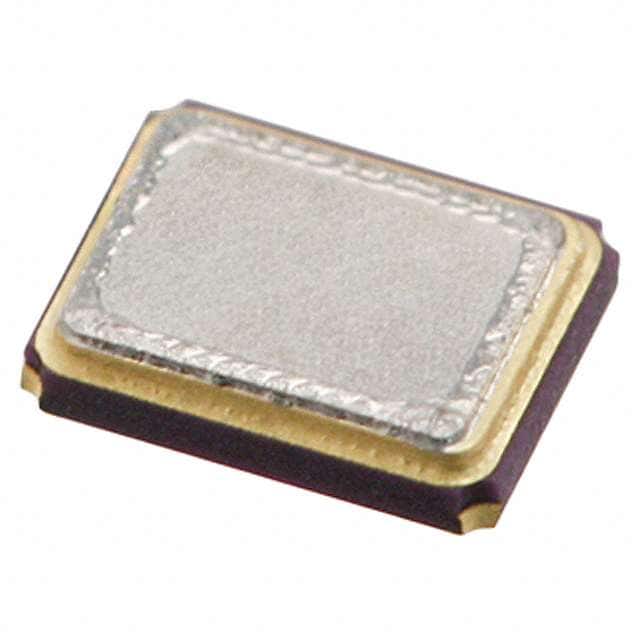

CRYSTAL 24.5760MHZ 12PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency24.58 MHz
Frequency tolerance20 ppm
Load capacitance12 pF
ESR40 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 24.576 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Environment and package | |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Load Capacitance | 12pF |
| Mfr | ECS Inc. |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Series | ECX-33Q |
| Type | MHz Crystal |
