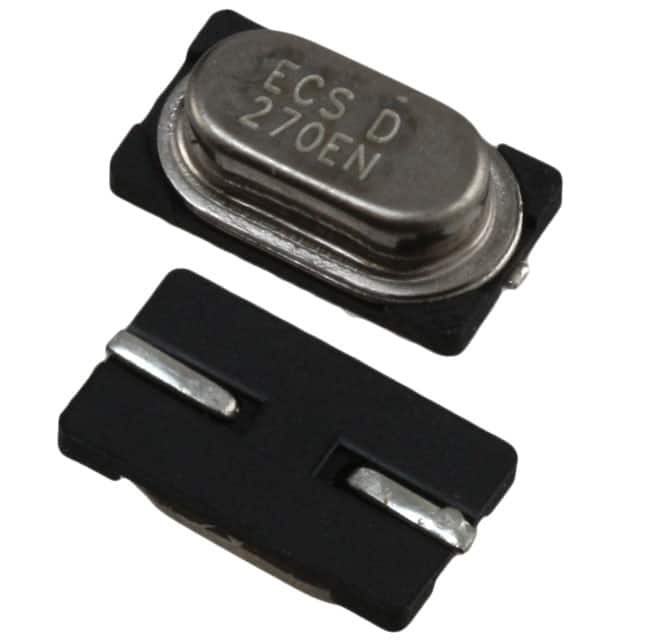

ECS-184-20-3X-TR
ECS Inc.United States

ECS-184-20-3X-TR

ActiveCrystals

CRYSTAL 18.4320MHZ 20PF SMD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Frequency18.43 MHz
Frequency tolerance30 ppm
Load capacitance20 pF
ESR50 ΩMax
AC and DC characteristics
Frequency18.432 MHz
Frequency Stability±50ppm
Frequency Tolerance±30ppm
Environment and package
Height - Seated (Max)0.091" (2.30mm)
Mounting TypeSurface Mount
Operating Temperature-10°C~70°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / CaseHC-49/US
Size / Dimension0.276" L x 0.161" W (7.00mm x 4.10mm)
Other
ESR (Equivalent Series Resistance)50 Ohms
Load Capacitance20pF
MfrECS Inc.
Operating ModeFundamental
Product StatusActive
Ratings-
SeriesCSM-3X
TypeMHz Crystal
