ECS Inc.United States
CRYSTAL 11.0592MHZ 20PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency11.06 MHz
Frequency tolerance30 ppm
Load capacitance20 pF
ESR50 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 11.0592 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Environment and package | |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -10°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

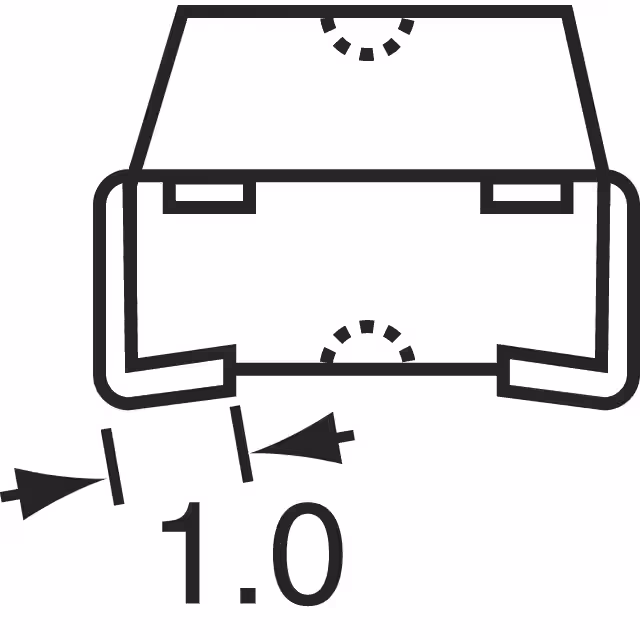

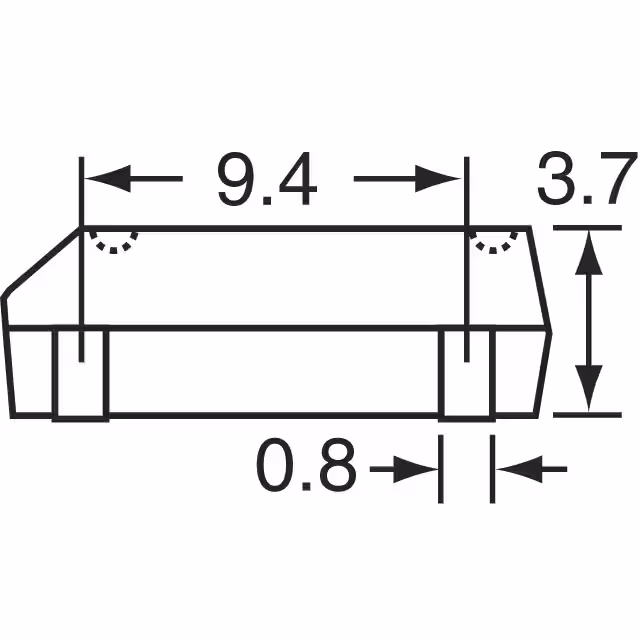

| Package / Case | 4-SOJ, 9.40mm pitch |
| Size / Dimension | 0.492" L x 0.181" W (12.50mm x 4.60mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Load Capacitance | 20pF |
| Mfr | ECS Inc. |
| Operating Mode | Fundamental |
| Product Status | Not For New Designs |
| Ratings | - |
| Series | ECX-3SX |
| Type | MHz Crystal |
