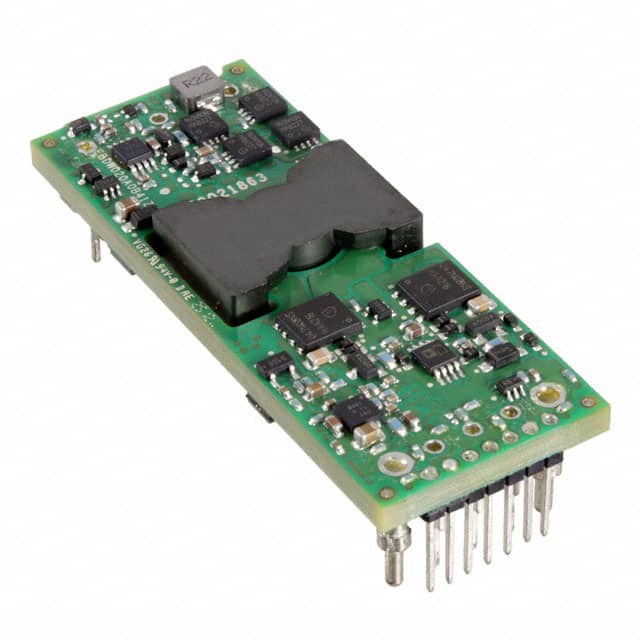

DC DC CONVERTER 12V 300W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 75 V
Output voltage12 V
Output current25 AMax
Power300 WMax
| Power | |
|---|---|
| Current - Output (Max) | 25A |
| Power (Watts) | 300 W |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 36V |
| Voltage - Isolation | 2.25 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | EBVW025 |
| Control Features | Enable, Active High |
| Efficiency | 94.7% |
| Features | Remote On/Off, UVLO |
| Mfr | ABB Power Electronics Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | Barracuda™ EBVW025A0B (300W) |
| Type | Intermediate Bus Converter |
