Pervasive DisplaysTaiwan, China

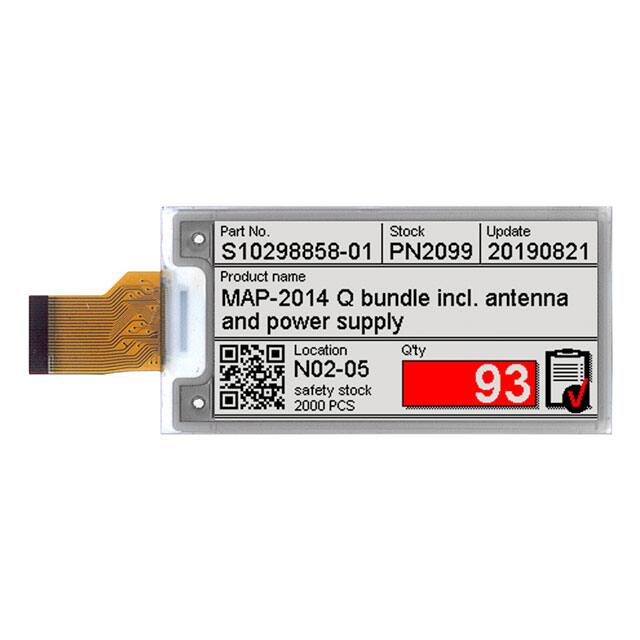

2.66" EPD, SPECTRA, W.ITC
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Diagonal Screen Size | 2.660" (67.56mm) |
| Dot Size | - |
| Package | Tray |
| Other | |
| Background Color | - |
| Backlight | Without Backlight |
| Base Product Number | E2266 |
| Display Mode | Reflective |
| Display Type | TFT - Electronic Paper Display (EPD) |
| Dot Pitch | 0.20mm W x 0.20mm H |
| Dot Pixels | 296 x 152 |
| Graphics Color | Black, Red, White |
| Interface | SPI |
| Mfr | Pervasive Displays |
| Product Status | Obsolete |
| Series | - |
| Touchscreen | - |
| Viewing Area | 60.09mm W x 30.70mm H |
Documents
No documents are linked to this part yet.
