Mechatronics Fan GroupUnited States

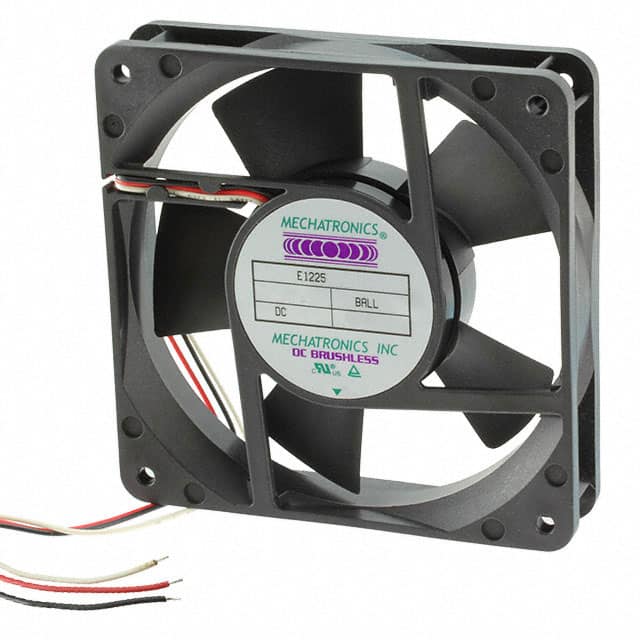

FAN AXIAL 120X25MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.580A |
| Voltage Range | - |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 44.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Square - 120mm L x 120mm H |
| Other | |
| Air Flow | 93.0 CFM (2.60m³/min) |
| Approval Agency | CE, cUL, TUV, UL |
| Base Product Number | E1225 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Thermistor |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Mfr | Mechatronics Fan Group |
| Product Status | Active |
| RPM | 3000 RPM |
| Series | E1225 |
| Static Pressure | 0.280 in H2O (69.7 Pa) |
| Termination | 2 Wire Leads |
| Weight | 0.436 lb (197.77 g) |
| Width | 25.00mm |
