E1022S.18.10
Prysmian GroupItaly

E1022S.18.10

ActiveMultiple Conductor Cables

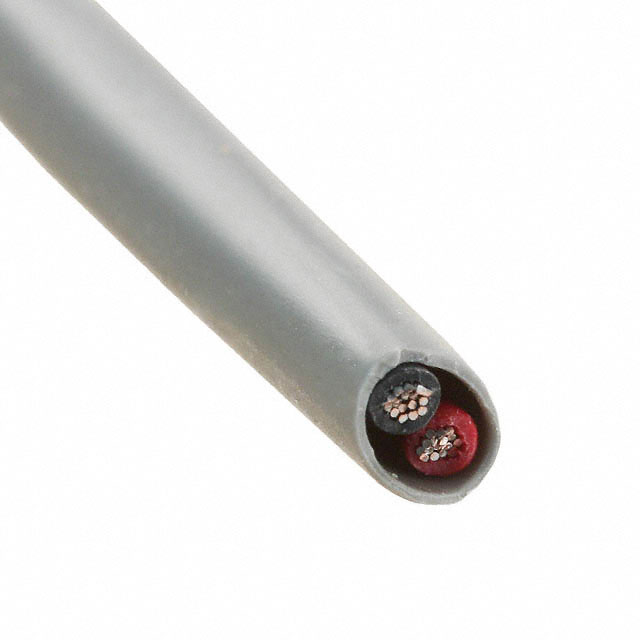

CABLE 2COND 20AWG GRAY 500'

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage300 V
Environment and package
Operating Temperature-20°C ~ 75°C
PackageBulk
Other
Base Product NumberE1022S
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Annealed Bare
Conductor Strand7/28
FeaturesRip Cord
Jacket ColorGray
Jacket (Insulation) Diameter0.134" (3.40mm)
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness0.0080" (0.203mm)
Length500.0' (152.4m)
MfrPrysmian Group
Number of Conductors2
Product StatusActive
RatingsASTM B-3
Series-
Shield Coverage-
Shield Material-
Shield Type-
UsageAlarm, Security, Sound
Wire Gauge20 AWG

Documents

No documents are linked to this part yet.
