Vishay General Semiconductor - Diodes DivisionUnited States

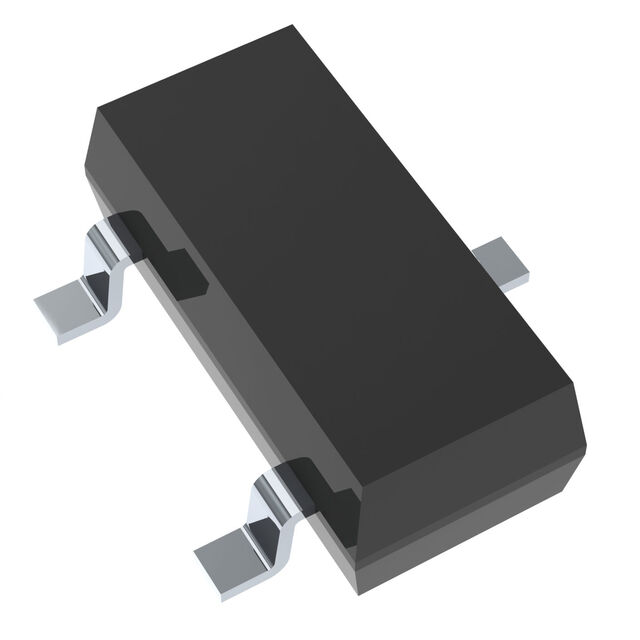

DZ23C5V6-E3-08
Zener Diode ArraysDIODE ZENER 5.6V 300MW SOT23
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 1 V |
| Power - Max | 300 mW |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 40 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Other | |
| Base Product Number | DZ23 |
| Configuration | 1 Pair Common Cathode |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Series | DZ23 |
| Tolerance | ±5% |
