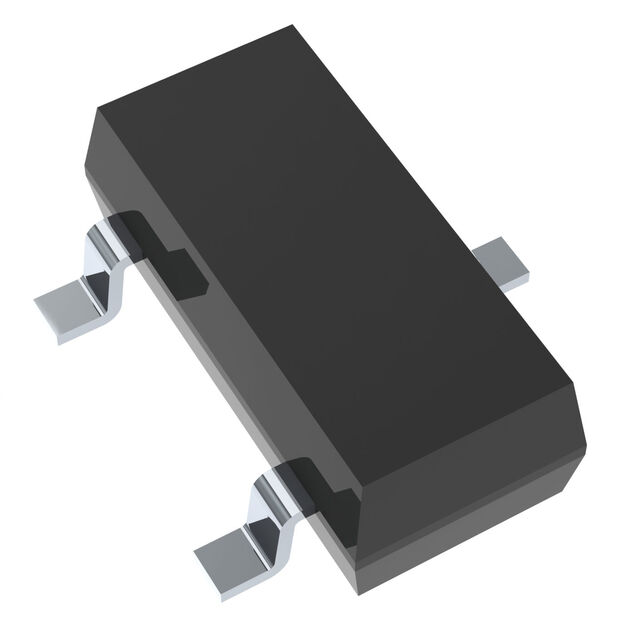

DZ23C22-HE3-08
Vishay General Semiconductor - Diodes DivisionUnited States

DZ23C22-HE3-08

Zener Diode Arrays

DIODE ZENER 22V 300MW SOT23

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Reverse Leakage @ Vr100 nA @ 17 V
Power - Max300 mW
Voltage - Zener (Nom) (Vz)22 V
AC and DC characteristics
Impedance (Max) (Zzt)55 Ohms
Environment and package
GradeAutomotive
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C
Package / CaseTO-236-3, SC-59, SOT-23-3
QualificationAEC-Q101
Supplier Device PackageSOT-23-3
Other
Base Product NumberDZ23
Configuration1 Pair Common Cathode
ManufacturerVishay General Semiconductor - Diodes Division
PackagingTape & Reel (TR)
Part StatusObsolete
SeriesDZ23
Tolerance±5%
