Bourns Inc.United States

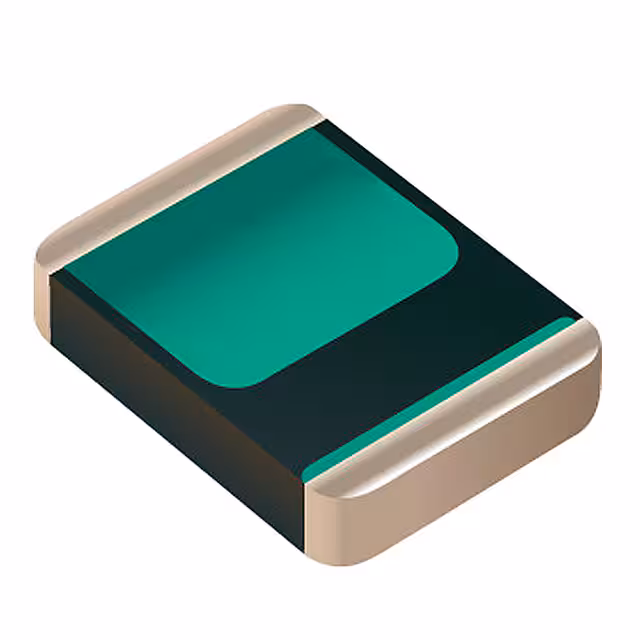

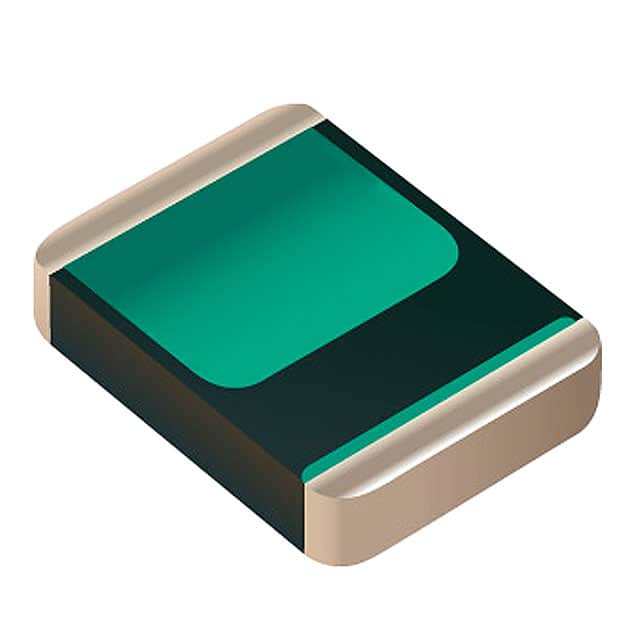

DV SERIES 230V 4032 PKG SMD VARI
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage360 V
Max AC voltage230 VMax
Max DC voltage300 VMax
Surge current1.2 kAMax
Energy23 JMax
| Power | |
|---|---|
| Current - Surge | 1.2 kA |
| Varistor Voltage (Max) | 396 V |
| Varistor Voltage (Min) | 324 V |
| Varistor Voltage (Typ) | 360 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 170 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Surface Mount, MLCV |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4032 (10080 Metric) |
| Other | |
| Base Product Number | DV230K |
| Energy | 23J |
| Features | - |
| Maximum AC Volts | 230 V |
| Maximum DC Volts | 300 V |
| Mfr | Bourns Inc. |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | DV |
