DTC143EMFHA

Single, Pre-Biased Bipolar TransistorsSOT-723

NPN 100mA 50V digital transistor with built-in 4.7kΩ bias resistors, SOT-723 package, AEC-Q101 qualified, suitable for inverter, interface, and driver applications.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

21 items
ParameterValue and test conditionsSource

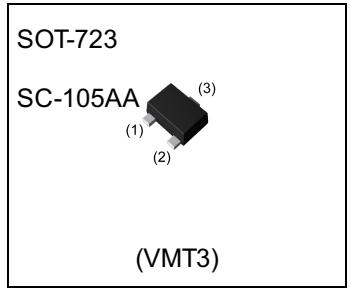

PackageSOT-723 (VMT3)
Operating Temperature-40 to +100 °C
GradeAEC-Q101 Qualified
Supply Voltage50 V
Input Voltage-10 to 30 V
Output Current100 mA
Collector Current100 mA
Power Dissipation150 mW
Junction Temperature150 °C
Range of Storage Temperature-55 to +150 °C
Input Voltage (Off)Max 0.5 V (VCC=5V, IO=100µA)
Input Voltage (On)Min 3.0 V (VO=0.3V, IO=20mA)
Output Voltage (On)Typ 100 mV, Max 300 mV (IO=10mA, II=0.5mA)
Input CurrentMax 1.8 mA (VI=5V)
Output Current (Off)Max 500 nA (VCC=50V, VI=0V)
DC Current GainMin 30 (VO=5V, IO=10mA)
Input ResistanceMin 3.29 kΩ, Typ 4.7 kΩ, Max 6.11 kΩ
Resistance RatioMin 0.8, Typ 1.0, Max 1.2
Transition FrequencyTyp 250 MHz (VCE=10V, IE=-5mA, f=100MHz)
Built-in Resistor R14.7 kΩ
Built-in Resistor R24.7 kΩ
All parameters (10)ExpandCollapse
Power
IC-最大集电极电流0.1A
VCEO-CE结击穿电压50V
VCEO-集射级击穿电压50V
AC and DC characteristics
fT-变换频率250MHZ
hFE-最小直流增益30
Hfe-最小直流增益30
Other
Pd-功率耗散0.15W
Pd-最大功率耗散0.15W
偏置电阻R14.7KΩ
偏置电阻R24.7KΩ

Pinout and package

PackageSOT-723 (VMT3)

PinNameFunctionSource
1IN(BASE) Input (Base)
2GND(EMITTER) Ground (Emitter)
3OUT(COLLECTOR) Output (Collector)
