Rohm SemiconductorJapan

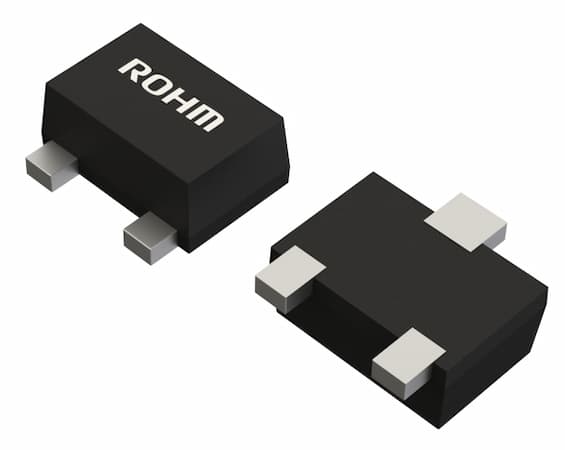

PNP, SOT-723, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Collector current Io (Ic) [A] | -0.1 |
| Output Current [A] | -0.03 |
| Power Dissipation (PD)[W] | 0.15 |
| Supply Status ? | Recommended |
| Supply voltage VCC 1[V] | -50 |
| Environment and package | |

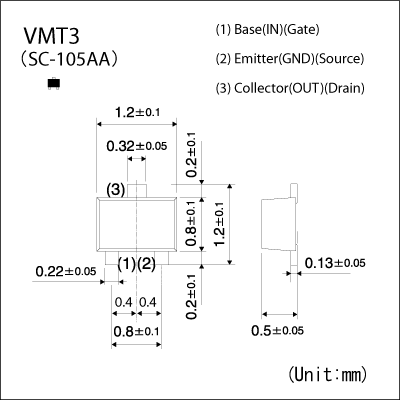

| JEITA Package | SC-105AA |
| Mounting Style | Surface mount |
| Package Code | SOT-723 |
| Package Size [mm] | 1.2x1.2 (t=0.55) |
| Storage Temperature (Max.)[°C] | 150 |
| Storage Temperature (Min.)[°C] | -55 |
| Other | |
| Common Standard | AEC-Q101 (Automotive Grade) |
| Emitter base Resistance R2 1[kΩ] | 47 |
| GI hFE | 68 or more |
| Input resistance R1 1[kΩ] | 47 |
| Number of terminal | 3 |
| Polarity | PNP |
