Rohm SemiconductorJapan
PNP DIGITAL TRANSISTOR (WITH BUI
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 150 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V |
| Frequency - Transition | 250 MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Cut Tape (CT); Digi-Reel® |

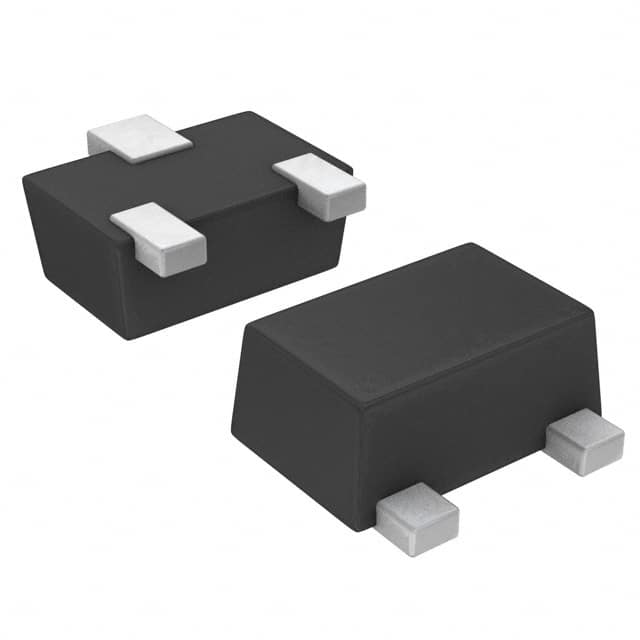

| Package / Case | SOT-723 |
| Supplier Device Package | VMT3 |
| Other | |
| Mfr | Rohm Semiconductor |
| Product Status | Not For New Designs |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms |
| Series | Automotive, AEC-Q101 |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
