Diodes IncorporatedUnited States

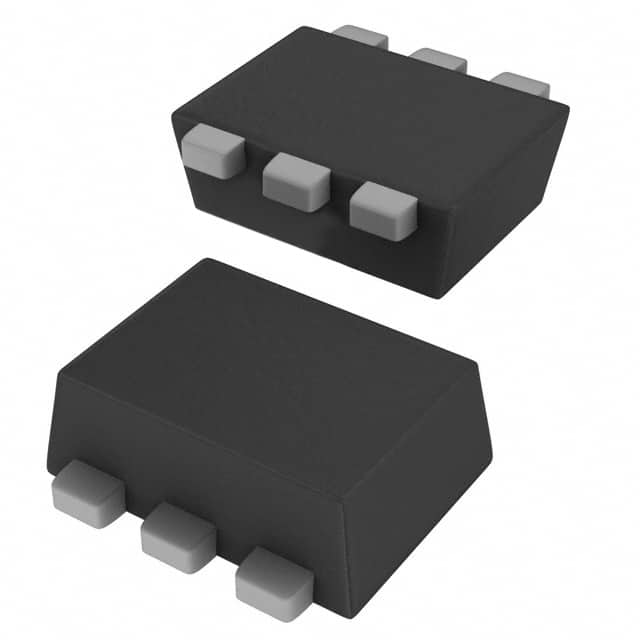

TRANS 2NPN 40V 0.2A SOT963
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOT-963 |
| Supplier Device Package | SOT-963 |
| Other | |
| Base Product Number | DST3904 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Transistor Type | 2 NPN (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
