IXYSUnited States

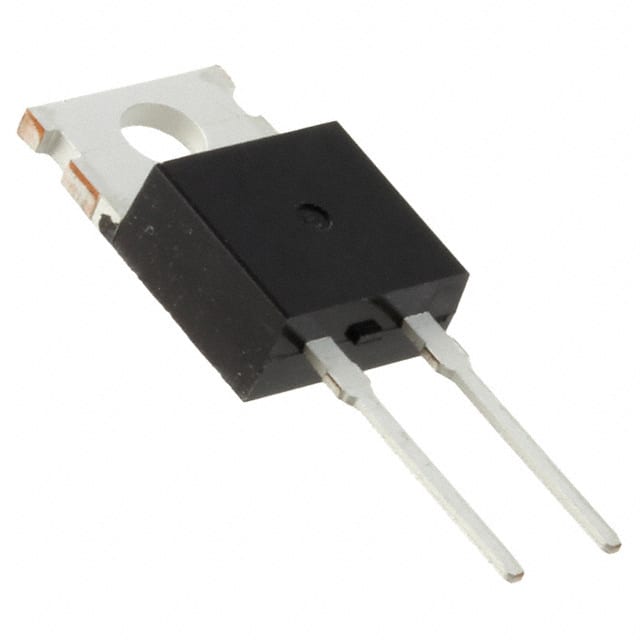

DIODE GEN PURP 600V 25A TO220-2
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current25 A
Forward voltage1.31 VMax · 25 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 25A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.31 V @ 25 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C~150°C |
| Package | Tube |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 |
| Other | |
| Base Product Number | DSEI25 |
| Capacitance @ Vr, F | 20pF @ 400V, 1MHz |
| Diode Type | Standard |
| Mfr | IXYS |
| Product Status | Active |
| Reverse Recovery Time (trr) | 50 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
