Microchip TechnologyUnited States

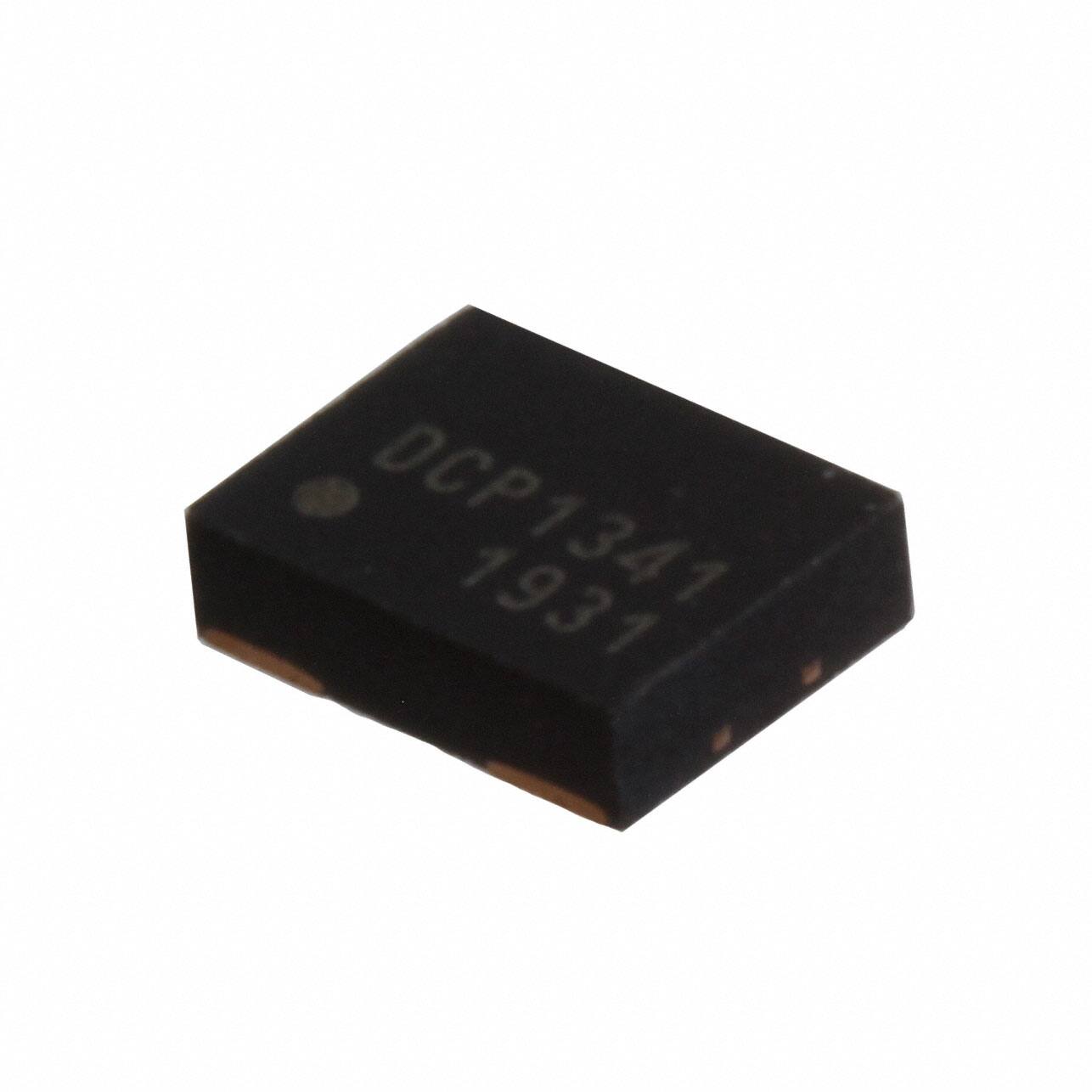

MEMS OSC PROG BLANK 1MHZ-150MHZ
All alternatives
View full reportTechnical parameters
Key specs
Frequency1 ~ 150 MHz
Frequency stability25 ppm
Supply voltage1.8 ~ 3.3 V
Output typeCMOS
| Power | |
|---|---|
| Current - Supply (Disable) (Max) | 15 µA |
| Current - Supply (Max) | 16.6mA |
| Voltage - Supply | 1.8V ~ 3.3V |
| AC and DC characteristics | |
| Available Frequency Range | 1 MHz ~ 150 MHz |
| Frequency Stability | - |
| Frequency Stability (Total) | ±25ppm |
| Spread Spectrum Bandwidth | - |
| Environment and package | |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Other | |
| Base Product Number | DSC8004 |
| Base Resonator | MEMS |
| Function | Standby |
| Mfr | Microchip Technology |
| Output | CMOS |
| Product Status | Active |
| Programmable Type | Blank (User Must Program) |
| Ratings | - |
| Series | DSC8004 |
| Type | XO (Standard) |
