Peerless by TymphanyUnited States

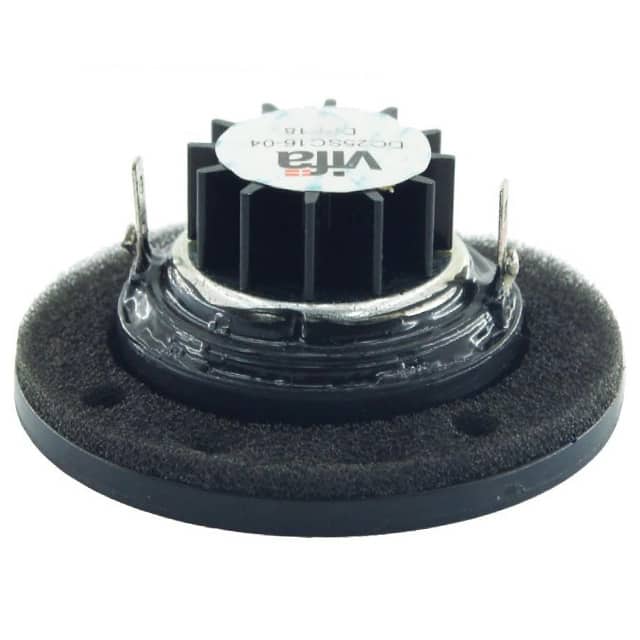

TWEETR 4OHM 100W TOP PORT 90.7DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 100 W |
| AC and DC characteristics | |
| Frequency Range | 2.5 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1369.53Hz |
| Impedance | 3.73 Ohms |
| Environment and package | |
| Height - Seated (Max) | 1.106" (28.10mm) |
| Package | Bulk |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Other | |
| Efficiency - dBA | 90.70 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Titanium, Treated |
| Material - Magnet | Nd-Fe-B |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | DQ |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Tweeter |
