Lascar ElectronicsUnited Kingdom

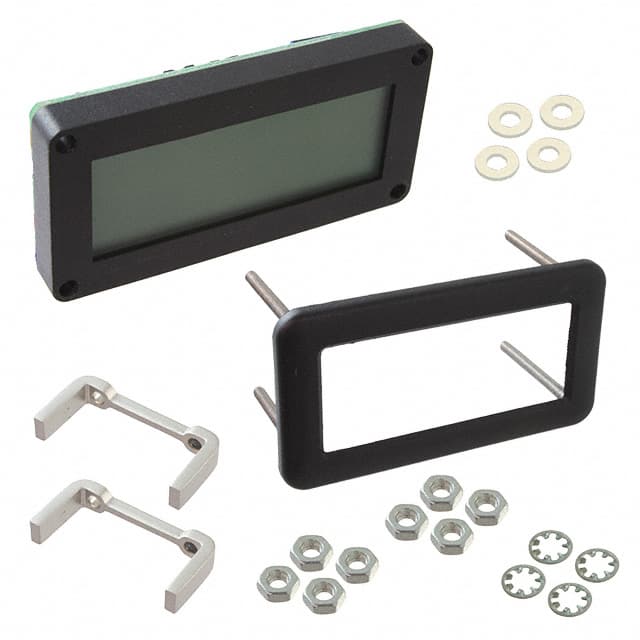

PROCESS METER LCD PNL MOUNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5 ~ 5.6VDC |
| Environment and package | |
| Display Characters - Height | 0.500" (12.70mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C~50°C |
| Package | Box |
| Panel Cutout Dimensions | Rectangular - 62.00mm x 32.00mm |
| Other | |
| Base Product Number | - |
| Display Type | LCD - Black Characters, Green Backlight |
| Features | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Measuring Range | 4 ~ 20mA |
| Measuring Type | Current |
| Mfr | Lascar Electronics |
| Number of Characters Per Row | 3.5 |
| Output Type | Reference |
| Product Status | Active |
| Series | DPM |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Weight | - |
