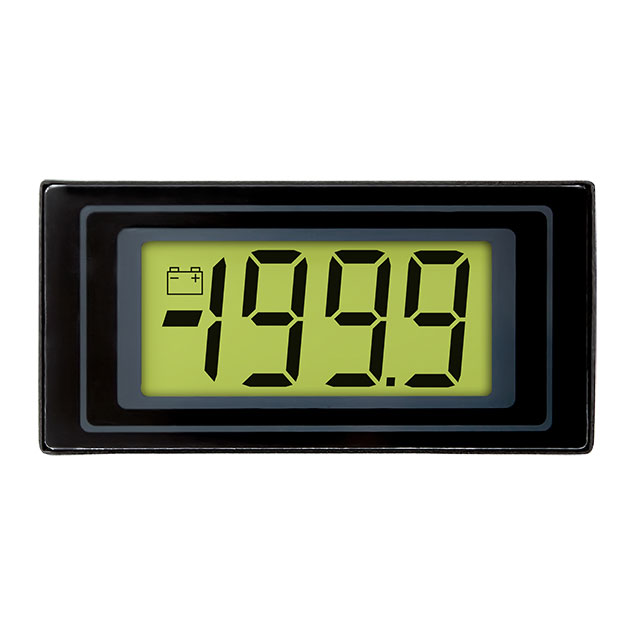

DPM 125-BL
Lascar ElectronicsUnited Kingdom

DPM 125-BL

ActiveMeters

PROCESS METER LCD PNL MOUNT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply7.5 ~ 14VDC
Environment and package
Display Characters - Height0.500" (12.70mm)
Mounting TypePanel Mount - Bezel, Window
Operating Temperature0°C ~ 50°C
PackageBox
Panel Cutout DimensionsRectangular - 45.00mm x 22.20mm
Other
Base Product NumberDPM 125
Display TypeLCD - Black Characters, Green Backlight
Features-
Ingress Protection-
Measuring Range±200mVDC
Measuring TypeVoltage
MfrLascar Electronics
Number of Characters Per Row3.5
Output TypeReference
Product StatusActive
SeriesDPM
Termination StylePC Pin
TypeVoltmeter
Weight-

Documents

No documents are linked to this part yet.
