TE ConnectivitySwitzerland

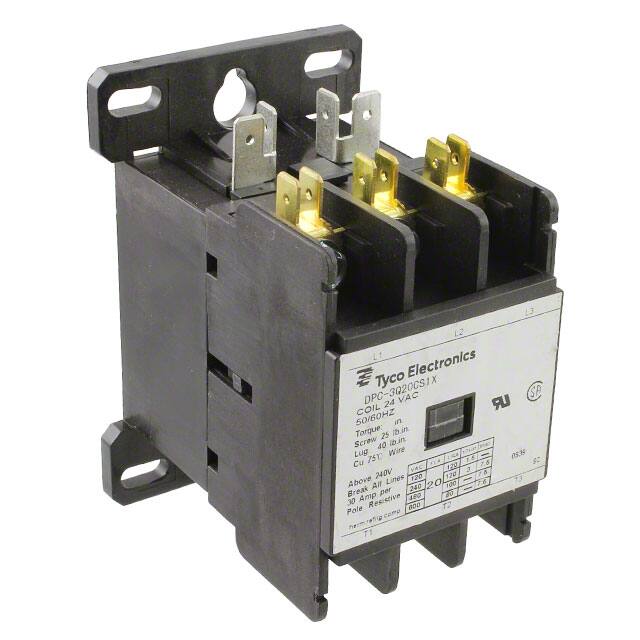

RELAY CONTACTOR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Power | - |
| Coil Voltage | 24VAC |
| Contact Rating (Current) | 20 A |
| Must Operate Voltage | 18 VAC |
| Must Release Voltage | 6 VAC |
| Switching Voltage | 600VAC - Max |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~65°C |
| Package | Bulk |
| Other | |
| Base Product Number | DPC |
| Coil Resistance | - |
| Contact Form | 3PST-NO (DM) (3 Form X) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Features | - |
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Product Status | Obsolete |
| Series | DPC |
| Termination Style | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
