PanasonicJapan

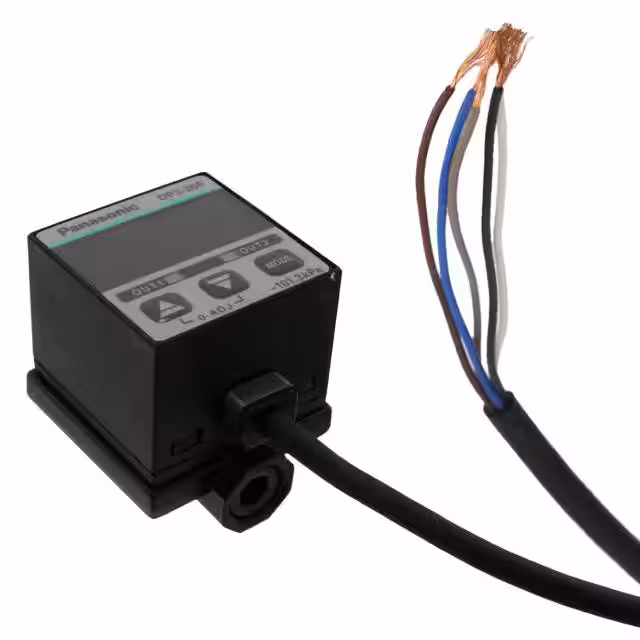

SENSOR PRESSURE 100KPA GAUGE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 12V ~ 24V |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Operating Temperature | -10°C~50°C |
| Package | Box |
| Package / Case | Module Box with Display |
| Port Size | Female - 1/8" (3.18mm) NPT |
| Supplier Device Package | - |
| Other | |
| Applications | Industrial Automation |
| Features | - |
| Maximum Pressure | 71.07PSI (490kPa) |
| Mfr | Panasonic Industrial Automation Sales |
| Operating Pressure | 14.5PSI (100kPa) |
| Output | - |
| Output Type | Analog Voltage, NPN - Open Collector |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Product Status | Obsolete |
| Series | DP2 |
| Termination Style | Connector |
