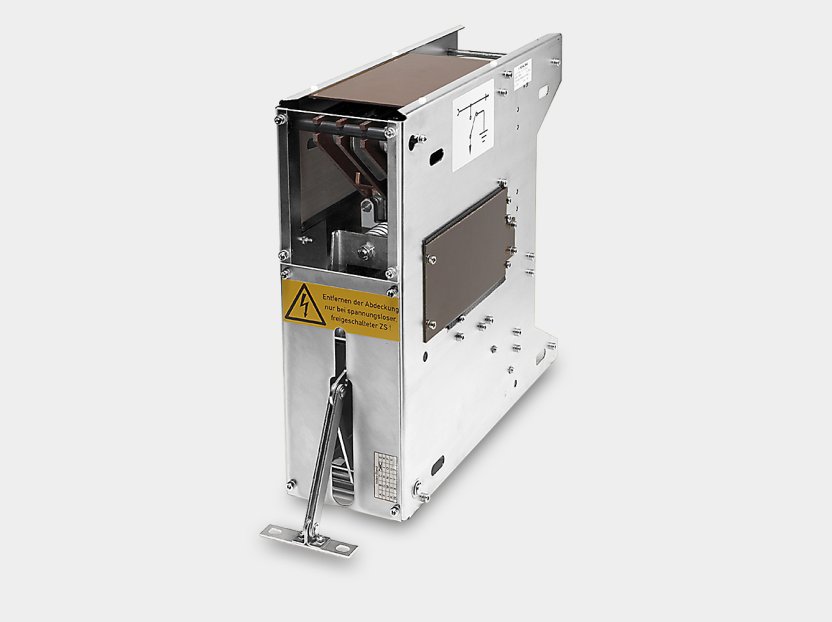

DISCONNECTING-AND-EARTHING-DEVICE

Active

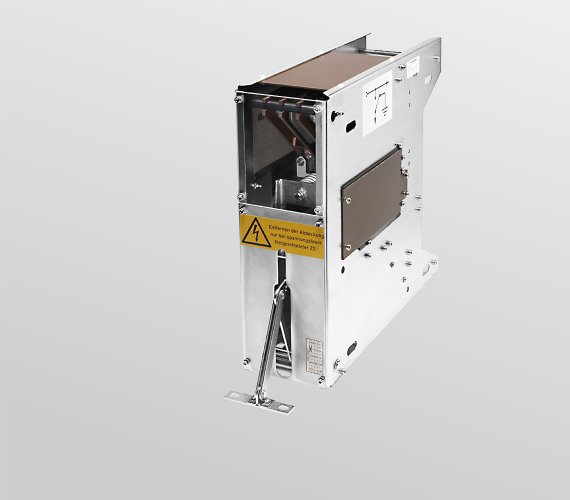

ZH1500 - Disconnecting and earthing device for single and multi-system rail vehicles

All alternatives

Power
Insulation, testing voltage	14 kV
Nominal voltage U nom	Frequency f, \| Conv. thermal current I th
Environment and package
Dimensions (W x H x T)	145 x 415 x 470 mm
Mounting orientation	vertical, horizontal
Temperature range	-40 °C … +85 °C
Other
110 V DC	—- \| 16 A
1.5 kV AC	50 Hz \| 100 A
1.5 kV DC	—- \| 100 A
3 kV DC/U max. 5 kV	—- \| 50 A
Auxiliary contacts	380 V AC \| 50 Hz \| 16 A
Blowout method	Arc chute, permanent-magnetic blowout
Contact	U nom \| f \| I th
Cycles, mechanical life	approx. 10,000, 30 years min.
Disconnecting contact	1.0 kV AC \| 16 ⅔ Hz \| 150 A
Earthing contact	3 kV DC/U max. 5 kV \| —- \| 50 A
Ingress protection rating, IEC 60529	IP00
Maximum load	250 kW
Number, configuration	Optional module: 2 x S800 SPDT
Shock resitance (IEC 61373, IEC 60068)	3 g, 30 ms
Vibration resistance (IEC 61373, IEC 60068)	0.35 g at 20 … 150 Hz
Weight	11 kg
