ZF ElectronicsGermany

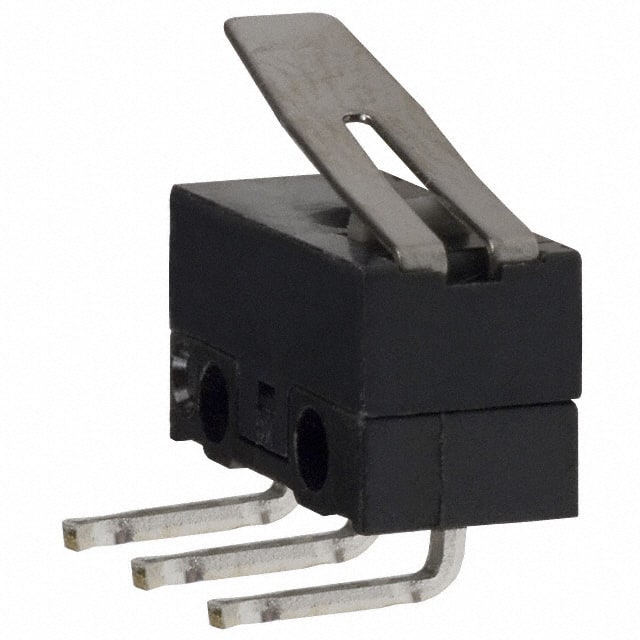

SWITCH SNAP ACTION SPDT 50MA 30V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 50mA (DC) |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Type | Lever, Straight |
| Base Product Number | DG23 |
| Circuit | SPDT |
| Differential Travel | 0.020" (0.5mm) |
| Electrical Life | 200,000 Cycles |
| Features | - |
| Ingress Protection | IP40 |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | ZF Electronics |
| Operating Force | 45gf |
| Operating Position | 0.268" (6.8mm) |
| Overtravel | 0.022" (0.55mm) |
| Pretravel | 0.071" (1.8mm) |
| Product Status | Obsolete |
| Release Force | - |
| Series | DG |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
