Diodes IncorporatedUnited States

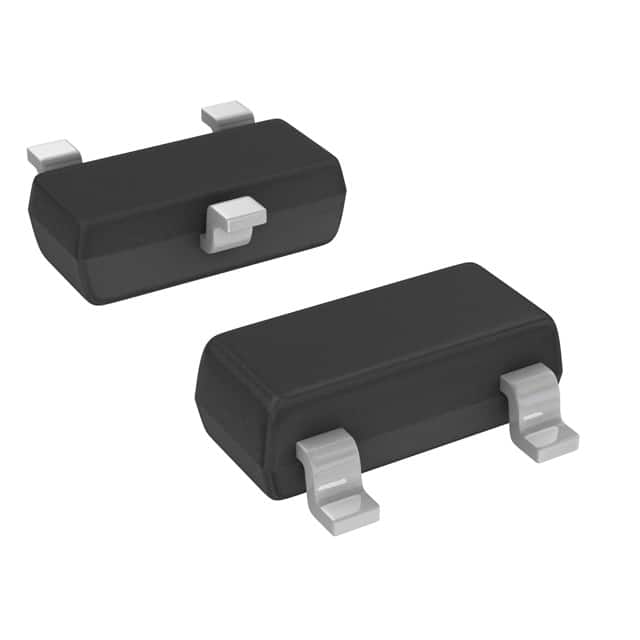

DIODE ZENER 6.8V 300MW SOT23
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage6.8 V
Tolerance2.56 %
Power300 mWMax
Zener impedance5 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 5 V |
| Power - Max | 300 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 5 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Other | |
| Base Product Number | DDZX6 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Tolerance | ±2.56% |
