Diodes IncorporatedUnited States

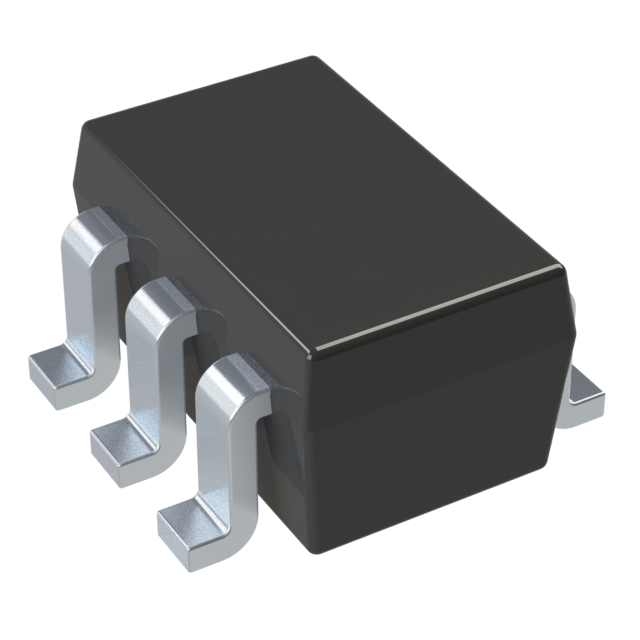

DDC115EU-7-F
Bipolar Transistor Arrays, Pre-BiasedTRANS 2NPN PREBIAS 0.2W SOT363
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Base Product Number | DDC115 |
| Manufacturer | Diodes Incorporated |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Resistor - Base (R1) | 100kOhms |
| Resistor - Emitter Base (R2) | 100kOhms |
| Series | - |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
