DD-8G18G-N-RAD-MF
PreliminaryPlanar Monolithics (PMI) Model DD-8G18G-N-RAD-MF is a 8 to 18 GHz diode detector featuring 1600 mV/mW sensitivity, 23 dBm power handling, and ±0.7 dB flatness. Package size is 1.3" x Ø0.31" with 2.92mm male / female connectors.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Input Power | 23 dBm Max |
| Voltage Sensitivity | 1600 mV/mW Typ |
| AC and DC characteristics | |
| Frequency Flatness (dB) | ±0.7 Typ |
| Frequency Max (GHz) | 18 |
| Frequency Min (GHz) | 8 |
| Frequency Range (GHz) | 8 to 18 |
| Environment and package | |
| Non-Operating Temperature | -65 ˚C to +150 ˚C |
| Operating Temperature | -55 ˚C to +125 ˚C |

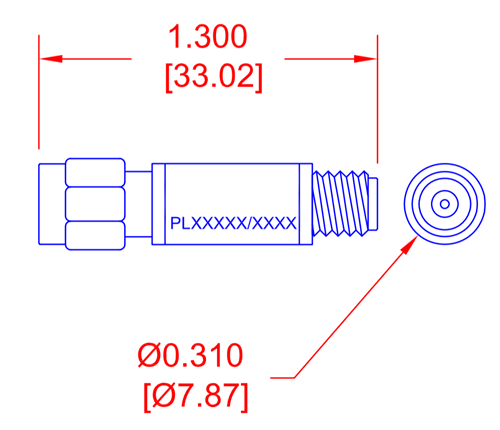

| Size | 1.3" x Ø0.31 |
| Temperature Cycle | MIL-STD-202, Method 107 Cond. A |
| Other | |
| Altitude | MIL-STD-202, Method 105 Cond. B |
| Connectors In/Out | 2.92mm Male / Female |
| Export Classification (ECCN) | EAR99 |
| Finish | Albaloy Plated |
| Humidity | MIL-STD-202, Method 103 Cond. B |
| Polarity | Negative |
| Shock | MIL-STD-202, Method 213 Cond. B |
| Status | Preliminary |
| Vibration | MIL-STD-202, Method 204 Cond. B |
