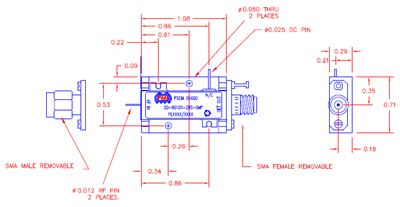

DD-8G12G-ZBS-SMF
PreliminaryDD-8G12G-ZBS-SMF - Diode Detectors from Planar Monolithics Industries
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max Input Power | +20 dBm |
| Voltage Sensitivity | 400 mV/mW typ. |
| AC and DC characteristics | |
| Frequency Flatness (dB) | ±1.0 dB typ. |
| Frequency Max (GHz) | 12 GHz |
| Frequency Min (GHz) | 8 GHz |
| Frequency Range (GHz) | 8.0 to 12.0 GHz |
| Environment and package | |
| Non-Operating Temperature | -65 ºC to +125 ºC |
| Operating Temperature | -40 ºC to +70 ºC |
| Temperature Cycle | MIL-STD-202F, Method 107 |
| Other | |
| Altitude | 17 kM |
| Connectors In/Out | SMA(M), SMA(F) |
| Export Classification (ECCN) | EAR99 |
| Finish | Gold Plated |
| Humidity | 95±4% from +30 to +70 ºC |
| Output Polarity | Positive |
| Shock | Half-Sine, 15G, 11mS, 3 shocks per axis |
| Status | Preliminary |
| Vibration | 0.2G2/Hz from 20 to 350 Hz -3 dB/ Octave to 2KHz |
| VSWR | 1.6:1 max. |
| VSWR In/Out (Measured) | 1.6:1 max. |
