DD-812-9PF-P-292MF
PreliminaryDD-812-9PF-P-292MF - Diode Detectors from Planar Monolithics Industries
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max Input Power | +20 dBm |
| Output Voltage | Positive (Negative is Available) |
| Voltage Sensitivity | 700 mV/mW min. |
| AC and DC characteristics | |
| Frequency Flatness (dB) | ±0.4 dB max. |
| Frequency Max (GHz) | 12.0 GHz |
| Frequency Min (GHz) | 8.0 GHz |
| Frequency Range (GHz) | 8.0 to 12.0 GHz |
| Rise Time | 5 ns typ. |
| Environment and package | |
| Non-Operating Temperature | -65°C to +100°C |
| Operating Temperature | -54°C to +85°C |

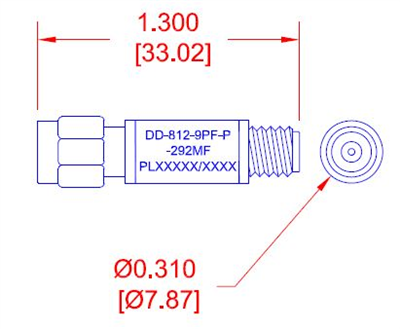

| Size | 1.30" x 0.31" |
| Temperature Cycle | MIL-STD-202F, Method 107D Cond. A |
| Other | |
| Altitude | MIL-STD-202F, Method 105C Cond. B |
| Connectors In/Out | 2.92 mm (M)/2.92 mm (F) |
| Export Classification (ECCN) | EAR99 |
| Finish | Painted Blue |
| Humidity | MIL-STD-202F, Method 103B Cond. B |
| Shock | MIL-STD-202F, Method 213B Cond. B |
| Status | Preliminary |
| Tangential Sensitivity | -50 dBm @ 2 MHz Video Bandwidth (With 2 dB Noise Figure Amplifier) |
| Vibration | MIL-STD-202F, Method 204D Cond. B |
| Video Capacitance | 9.0 pF nominal |
| VSWR | 2.4:1 typ. |
