Littelfuse Inc.United States

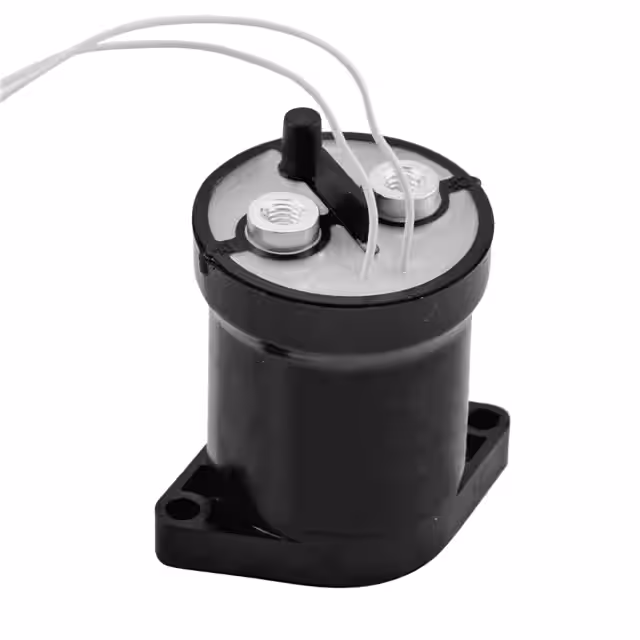

CONTACTOR 24V RELAY 50A 900V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 250 mA |
| Coil Power | 6W |
| Coil Voltage | 24VDC |
| Contact Rating (Current) | 50 A |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 2.4 VDC |
| Switching Voltage | 900VDC - Nom |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Other | |
| Coil Resistance | 96Ohms |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | - |
| Features | - |
| Mfr | Littelfuse Inc. |
| Operate Time | 25 ms |
| Product Status | Obsolete |
| Release Time | 10 ms |
| Series | DCNLEV50 |
| Termination Style | Stud, Wire Leads |
