Littelfuse/Commercial Vehicle ProductsUnited States

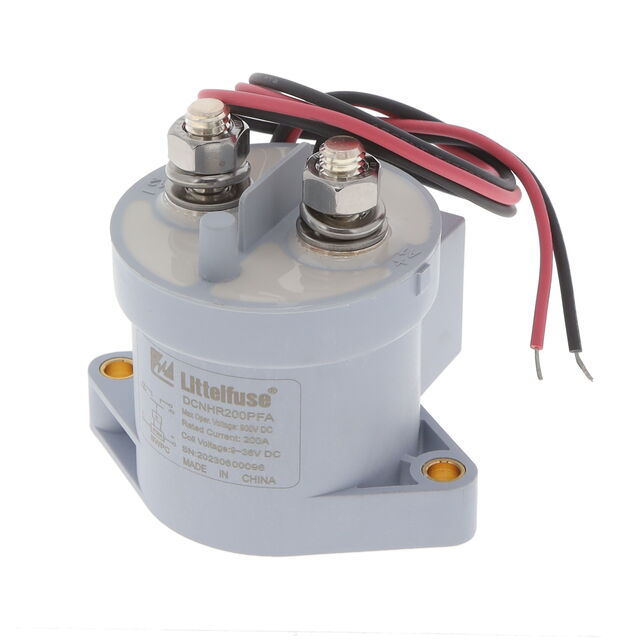

DCNHR200PFA
Contactors (Electromechanical)DC CONTACTOR CVP RELAY
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Power | 45W |
| Coil Voltage | 9 ~ 36VDC |
| Contact Rating (Current) | 200 A |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 6 VDC |
| Switching Voltage | 900VDC - Max |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Other | |
| Coil Resistance | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | - |
| Features | - |
| Manufacturer | Littelfuse/Commercial Vehicle Products |
| Operate Time | 25 ms |
| Packaging | Bulk |
| Part Status | Active |
| Release Time | 12 ms |
| Series | DCNHR |
| Termination Style | Stud, Wire Leads |
Documents
No documents are linked to this part yet.
