ARTESYN / Advanced EnergyUnited States

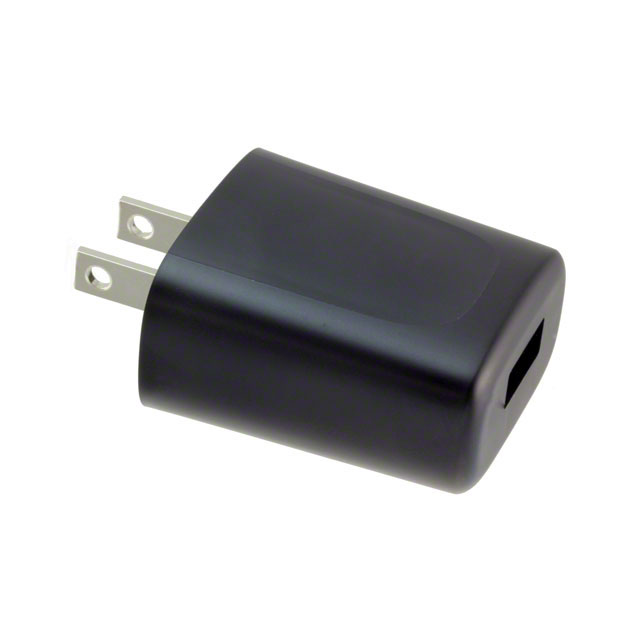

DA5-050US-B
AC DC Desktop, Wall Power AdaptersAC/DC WALL MOUNT ADAPTER 5V 5W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage5 V
Output current1 AMax
Power5 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1A |
| No Load Power Consumption | 75mW (Max) |
| Power (Watts) | 5 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Environment and package | |
| Operating Temperature | -10°C ~ 40°C |
| Size / Dimension | 1.73" L x 1.56" W x 0.98" H (44.0mm x 39.5mm x 25.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CCC, CE, CSA, DEMKO CB, PSE, UL |
| Base Product Number | DA5-050 |
| Cord Length | - |
| Efficiency | Level VI, CoC Tier 2 |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Manufacturer | ARTESYN / Advanced Energy |
| Output Connector | USB A Receptacle |
| Packaging | Bulk |
| Part Status | Obsolete |
| Polarization | - |
| Region Utilized | North America |
| Series | DA-050 (5W) |
